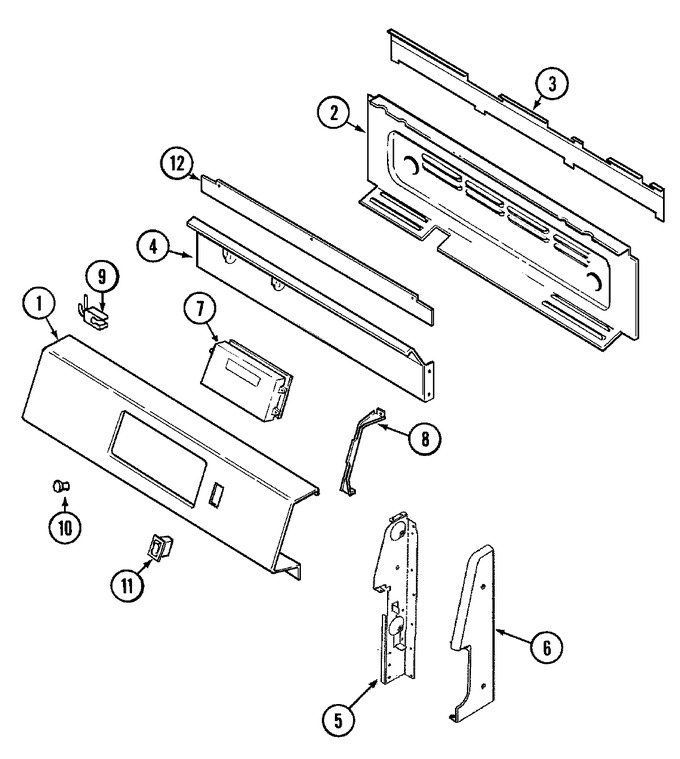

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74004763 | Panel, Control (blk) | 10 |
|
- | ||||
| 2 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 2 | 74003493 | Housing, Control Panel | 10 |
|
- | ||||
| 3 | 74004551 | Extension, Control Panel | 10 |
|
- | ||||
| 3 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 4 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 4 | 74003488 | Shield, Vent Deflector | 10 |
|
- | ||||
| 5 | 74003489 | Bracket, Control Panel (lt) | 10 |
|
- | ||||
| 5 | 74003490 | Bracket, Control Panel (rt) | 10 |
|
- | ||||
| 6 | 74002432 | Screw (1 3/16``-blk) | 10 |
|
- | ||||
| 6 | 74003606 | End Cap, Control Pnl (lt-blk) | 10 |
|
- | ||||
| 6 | WP98008545 | Screw (8abx1/2``-blk) (Replaces: 790448) | 10 |
|
$ 15.94 | ||||
| 6 | 74003605 | End Cap, Control Pnl (rt-blk) | 10 |
|
- | ||||
| 7 | 7602P121-60 | Clock (blk) | 10 |
|
- | ||||
| 7 | 74004882 | Clock (blk) | 11 |
|
- | ||||
| 7 | WP59002061 | Screw (6abx3/8-sn) (Replaces: 74004288) | 10 |
|
$ 6.98 | ||||
| 8 | WPY706189 | Screw (8abx3/8-blk) (Replaces: 7101P347-60) | 10 |
|
Immediately | $ 6.47 | |||
| 8 | 74003602 | Bracket, Clock | 10 |
|
- | ||||
| 9 | 7407P100-60 | Light, Indicator | 10 |
|
- | ||||
| 10 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | 10 |
|
$ 5.16 | ||||
| 11 | 74003363 | Switch, Rocker (blk) | 10 |
|
- | ||||
| 12 | 8036P003-60 | Shield, Sight | 10 |
|
- | ||||
| 12 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 13 | 12001323 | Wire/terminal Kit | 10 |
|
- | ||||
| 14 | 74004762 | Harness, Control Panel | 10 |
|
- | ||||
| 15 | 74002746 | Manual, Use & Care (frch) | 10 |
|
- | ||||
| 15 | 16008701 | Manual, Use & Care (frch) | 10 |
|
- | ||||
| 15 | 74004660 | Manual, Use & Care | 10 |
|
- | ||||
| 16 | 71002782 | Guide, Cooking | 10 |
|
- | ||||
| 17 | 16010161 | Manual, Srvc Elec/gas Range | 10 |
|
- |
