01 - Body
02 - Control Panel
03 - Door/drawer
04 - Gas Controls
05 - Oven/base
06 - Top Assembly
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

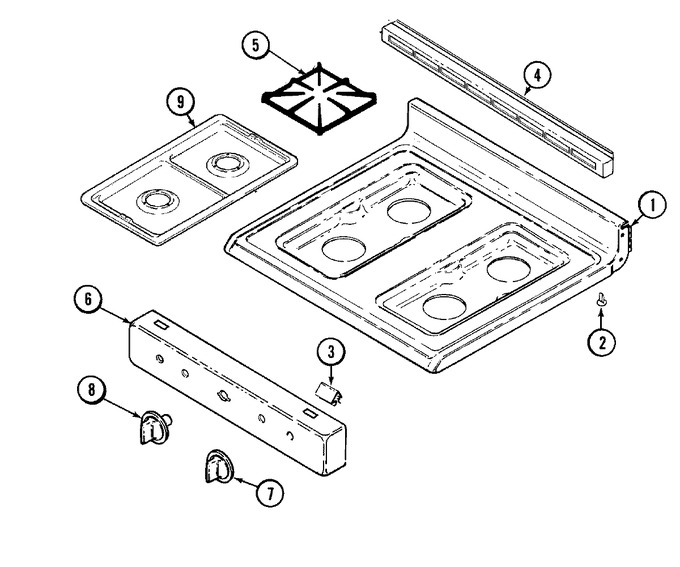

| 1 | 74003513 | Top, Main (alm) | 10 |
|
- | ||||
| 1 | 74001428 | Spacer, Main Top | 10 |
|
- | ||||
| 2 | 8016P015-60 | Glide | 10 |
|
$ 5.65 | ||||
| 3 | 7112P087-60 | Clip, Top Locking | 10 |
|
- | ||||
| 4 | 74003501 | Trim, Vent (blk) | 10 |
|
- | ||||
| 4 | 7101P208-60 | Screw (10abx1/4p Tr Zn) | 10 |
|
$ 11.92 | ||||
| 5 | 74001059 | Grate (blk) | 10 |
|
- | ||||
| 6 | 74003843 | Panel, Manifold (blk) | 10 |
|
- | ||||
| 6 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 6 | WPW10068250 | Screw (Replaces: 7101P074-60) | 10 |
|
$ 3.66 | ||||
| 7 | 74004764 | Knob, Burner Valve (blk) | 10 |
|
- | ||||
| 8 | 74004765 | Knob, Thermostat (blk) | 10 |
|
- | ||||
| 9 | 5401A452-60 | Drip Bowl Kit (accessory) | 10 |
|
- |
