01 - Gas Controls
02 - Top & Burner Box
New Model Search:

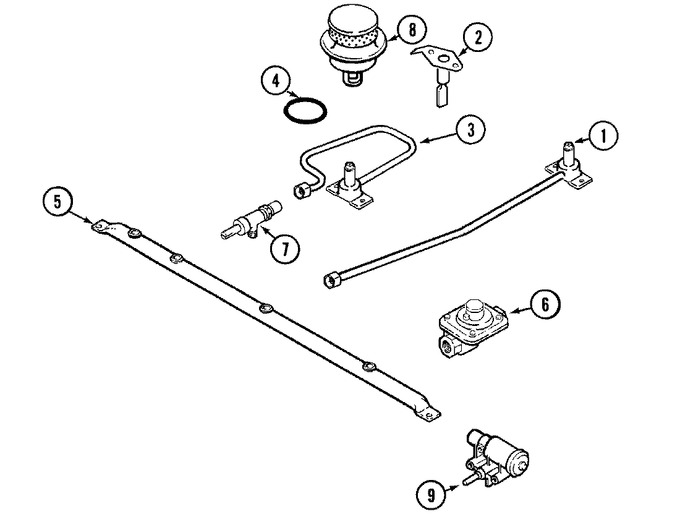

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74003931 | Fitting, Orifice (rear) | 10 |
|
- | ||||
| 2 | W10124350 | Not Required Part Or See Note (ignitor Not Sold Separately Must Order Item No.8) | 10 |
|
- | ||||
| 3 | 74003930 | Fitting, Orifice (frt) | 10 |
|
- | ||||
| 4 | 74002745 | Gasket, Burner | 10 |
|
- | ||||
| 5 | 74004642 | Pipe, Manifold | 12 |
|
- | ||||
| 5 | 7513P161-60 | Pipe, Manifold | 10 |
|
- | ||||
| 5 | 7507P047-60 | Plug, Pipe | 10 |
|
- | ||||
| 6 | 7507P083-60 | Fitting, Half Union | 10 |
|
- | ||||
| 6 | 7510P043-60 | Regulator, Pressure | 10 |
|
- | ||||
| 6 | 74004235 | Regulator, Pressure | 12 |
|
- | ||||
| 7 | 74004644 | Valve, Top Burner | 12 |
|
- | ||||
| 7 | 74003933 | Valve, Top Burner | 10 |
|
- | ||||
| 7 | 74003932 | Valve, Top Burner | 10 |
|
- | ||||
| 7 | 74004643 | Valve, Top Burner | 12 |
|
- | ||||
| 8 | 74003949 | Burner Assy. (blk) | 10 |
|
- | ||||
| 9 | 74003947 | Wires, Igniter | 10 |
|
- | ||||
| 9 | 74003946 | Igniter, Top Burner | 10 |
|
- | ||||
| 10 | 74004234 | Fitting, Half Union | 12 |
|
$ 49.91 |
