01 - Gas Controls

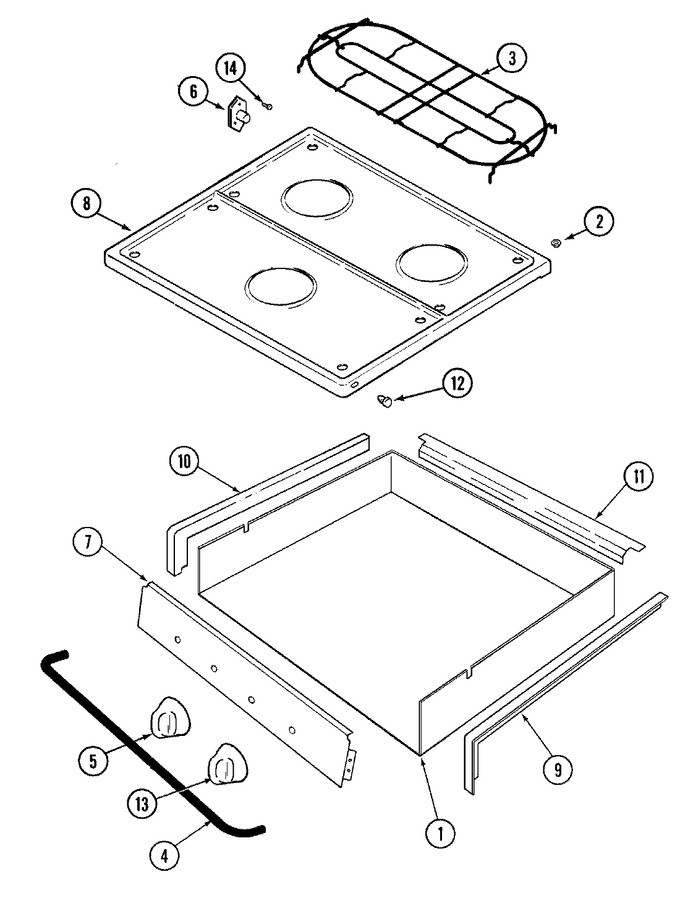

02 - Top & Burner Box


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74003956		Box, Burner Assy	10	Appelez-nous	-
2	Y8007P02060		Grommet	10			$ 5.88
3	74003948		Grate, Burner	10	Appelez-nous	-
4	3609F006-70		Guard, Fabric	10	Appelez-nous	-
5	74003941		Knob, Burner (blk)	10	Appelez-nous	-
5	74003942		Knob, Burner (blk)	10			$ 17.80
6	7103P109-60		T-nut (rv Hinge)	10	Appelez-nous	-
7	74003957		Panel, Manifold	10	Appelez-nous	-
8	74003955		Top, Main (wht)	10	Appelez-nous	-
9	74002839		Trim (rt-blk)	10	Appelez-nous	-
10	74002840		Trim (lt-blk)	10	Appelez-nous	-
11	74002841		Trim, Rear (blk)	10	Appelez-nous	-
12	8003P008-60		Bumper	10	Appelez-nous	-
13	74003944		Knob, Igniter (blk)	10		Immediately	$ 15.89
14	7101P301-60		Screw No.6 X 1/2	10	Appelez-nous	-
15	74003938		Manual, Use & Care	10	Appelez-nous	-
16	16000327		Guide, Quick Ref. - Maytag	10	Appelez-nous	-
