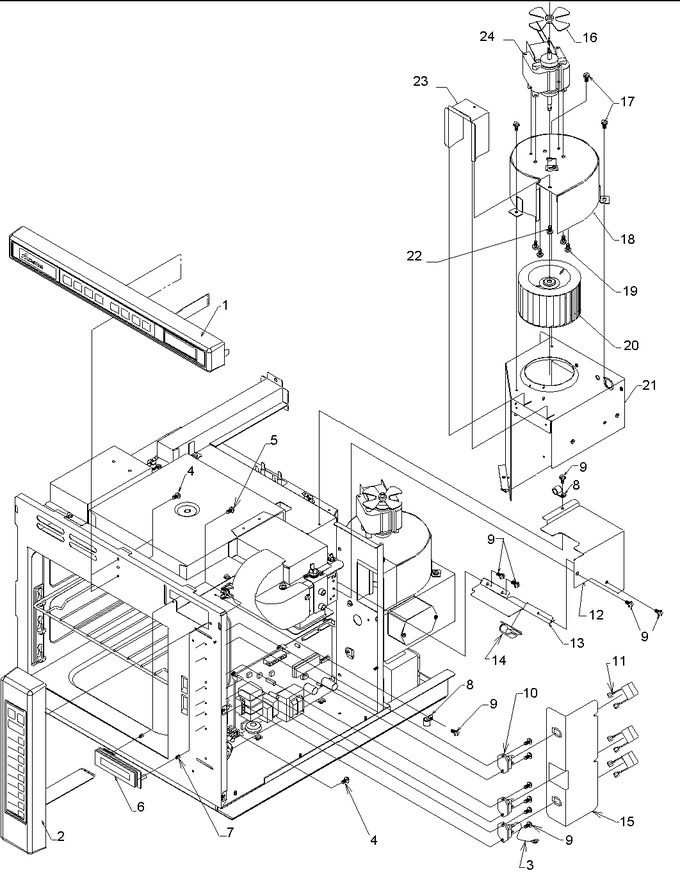

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	R0156990		Touch Panel-top Menumaster		Appelez-nous	-
2	R9800673		Pnl, Touch (side)		Appelez-nous	-
3	10901306		Wire, Jumper		Appelez-nous	-
4	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
5	M0223416		Screw-mach		Appelez-nous	-
6	12040201		Vfd- Mod (lighted Display)		Appelez-nous	-
7	M0800401		Spacer-hex		Appelez-nous	-
8	M0102305		Clamp, Tube		Appelez-nous	-
9	WP90767		Screw   (Replaces: M0211216)			Immediately	$ 7.04
10	D7681501		Triac				$ 44.05
11	10172901Q		Snubber Assembly		Appelez-nous	-
12	10978702		Cover-mag Inlet		Appelez-nous	-
13	10978601		Duct-blower/mag		Appelez-nous	-
14	WPM0104106		Clip   (Replaces: M0104106)				$ 7.00
15	12210101		Shield, Triac		Appelez-nous	-
16	B5706704		Fan Blade				$ 8.23
17	M0231704		Screw, Tf		Appelez-nous	-
18	10797203		Scroll Weld		Appelez-nous	-
19	M0253916		Screw		Appelez-nous	-
20	C3670808		Wheel, Blower		Appelez-nous	-
21	12000810		Weld,blower Brkt		Appelez-nous	-
22	WP90767		Screw   (Replaces: M0211216)			Immediately	$ 7.04
23	10977801		Transition-blower		Appelez-nous	-
24	10773302		Motor- Blower		Appelez-nous	-
NI	12029401		Harness-lv/display		Appelez-nous	-
