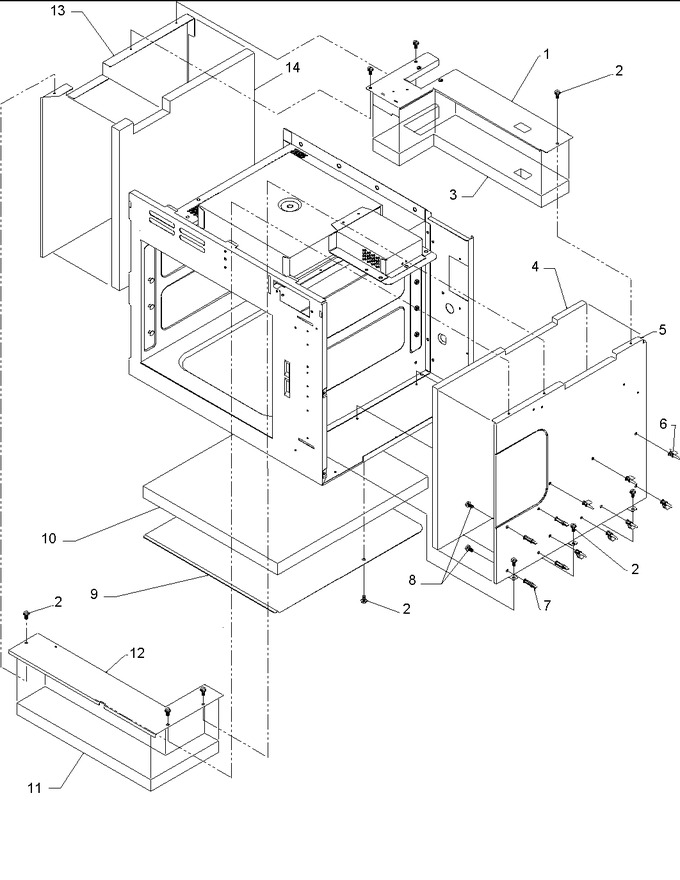

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10977401		Retainer-top Back Insul		Appelez-nous	-
2	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 7.04
3	12000701		Insul- Top Back Retainer		Appelez-nous	-
4	12000401		Insul- Side Retainer Rt		Appelez-nous	-
5	10977102		Retainer-side Insul Rt		Appelez-nous	-
6	M0590602		Support P-c Bd A		Appelez-nous	-
7	M0580505		Support P.c. Board		Appelez-nous	-
8	5043-W		No.6 F X 1/4`` Screw (25)		Appelez-nous	-
9	10977501		Retainer-bottom Insul		Appelez-nous	-
10	12000703		Insul-bottom Retainer		Appelez-nous	-
11	12000702		Insul- Top Front Retainer		Appelez-nous	-
12	10978002		Retainer-top Front Insul		Appelez-nous	-
13	10977301		Retainer-side Insul Lt		Appelez-nous	-
14	12000501		Insul- Side Retainer Lt		Appelez-nous	-
