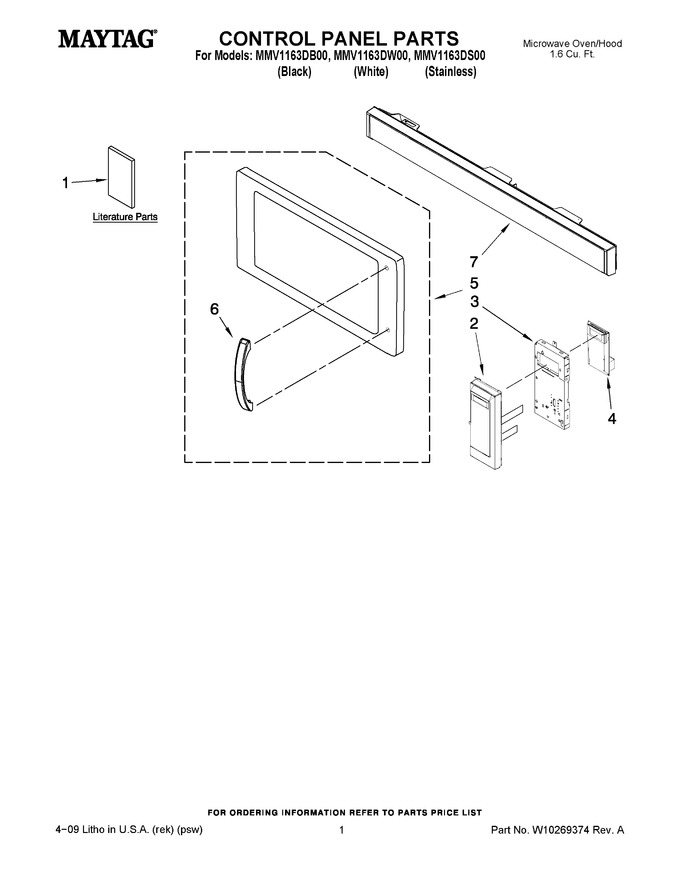

01 - Control Panel Parts
02 - Cabinet And Air Flow Parts
03 - Interior And Ventilation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10188226 | U & C Guide |
|
- | |||||
| 1 | W10188229 | Tech Sheet, Slim |
|
- | |||||
| 1 | W10188227 | Label, Cook Guide |
|
- | |||||
| 1 | W10188228 | Install, Instruct |
|
- | |||||
| 2 | W10260068 | Panel Asy, Control Membrane, Lens And Bracket (black) |
|
- | |||||
| 2 | W10260070 | Panel Asy, Control Membrane, Lens And Bracket (white) |
|
- | |||||
| 2 | W10260067 | Panel Asy, Control Membrane, Lens And Bracket (stainless) |
|
- | |||||
| 3 | W10260066 | Bracket, Control |
|
- | |||||
| 4 | W10258390 | Microcomputer |
|
$ 311.83 | |||||
| 5 | W10260062 | Complete Door (black) |
|
- | |||||
| 5 | W10260063 | Complete Door (white) |
|
- | |||||
| 5 | W10260061 | Complete Door (stainless) |
|
- | |||||
| 6 | W10258181 | Handle, Door (black) |
|
- | |||||
| 6 | W10258184 | Handle, Door (white) |
|
- | |||||
| 6 | W10258185 | Handle, Door (stainless) |
|
- | |||||
| 7 | W10258388 | Grille Assembly (black) |
|
- | |||||
| 7 | W10258389 | Grille Assembly (white) |
|
- | |||||
| 7 | W10258387 | Grille Assembly (stainless) |
|
- |
