01 - Control Panel Parts


02 - Cabinet And Air Flow Parts


03 - Interior And Ventilation Parts


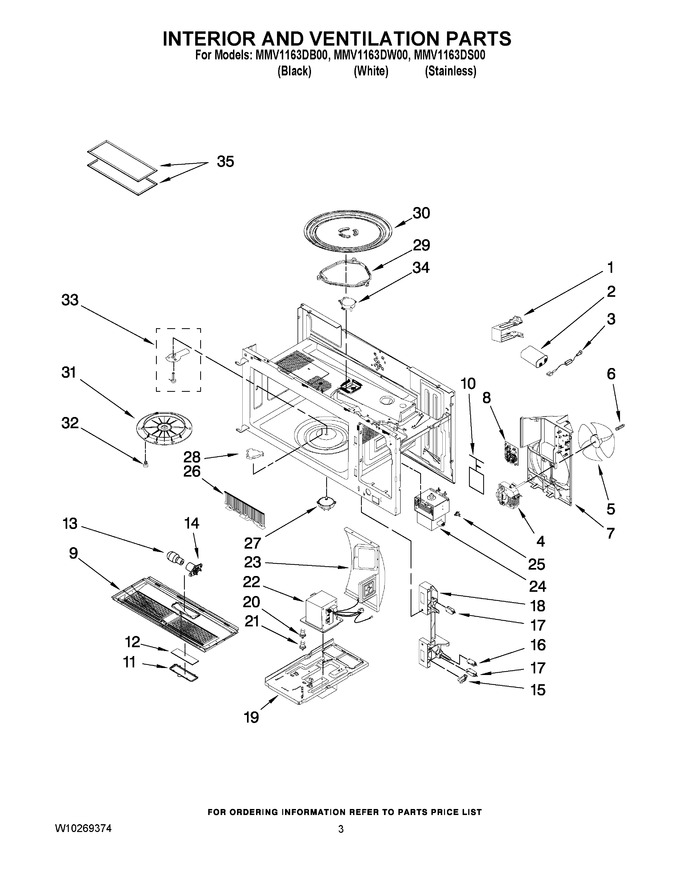

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DE61-00115A		Bracket, Capacitor				$ 18.00
2	8206562		Capacitor   (Replaces: 2501-001016)			Immediately	$ 108.83
3	DE91-70063D		Diode, H.v.			Immediately	$ 15.89
4	DE31-10155T		Motor-fan				$ 91.55
5	DE31-90051A		Blade-fan				$ 6.95
6	W10260124		Spring, Blade		Appelez-nous	-
7	W10260125		Guide, Suction		Appelez-nous	-
8	DE96-00400A		Filter, Noise				$ 84.88
9	W10258365		Plate, Bottom (white)		Appelez-nous	-
9	W10254197		Plate, Bottom (black)		Appelez-nous	-
10	DE61-30129A		Support, Pcb				$ 16.82
11	DE63-00100C		Holder, Glass (white)				$ 15.35
11	555555		Holder, Glass (black)   (Replaces: DE63-00100B)				$ 151.94
12	DE67-40063A		Glass, Lamp			Immediately	$ 18.00
13	4713-001013		Lamp			Immediately	$ 18.00
14	DE47-00006A		Holder-lamp				$ 17.58
15	DE66-90106B		Lever, Switch				$ 17.58
16	3405-001033		Switch-micro			Immediately	$ 17.58
17	3405-001034		Switch, Micro			Immediately	$ 14.85
18	DE66-00168A		Latch Board			Immediately	$ 18.65
19	W10260156		Plate, Base		Appelez-nous	-
20	555555		Sw-thermo   (Replaces: DE47-20007A)				$ 151.94
21	DE47-20034A		Thermostat			Immediately	$ 20.09
22	W10260179		Transformer, H.v.		Appelez-nous	-
23	W10260127		Duct, Magnetron		Appelez-nous	-
24	W10260180		Magnetron		Appelez-nous	-
25	555555		Thermostat   (Replaces: DE47-20059A)				$ 151.94
26	W10260201		Cover, Front		Appelez-nous	-
27	W10260200		Motor, Turntable		Appelez-nous	-
28	W10260202		Coupler		Appelez-nous	-
29	DE92-90495A		Guide, Tray				$ 42.55
30	W10260144		Tray, Cooking		Appelez-nous	-
31	W10258364		Cover, Stirrer		Appelez-nous	-
32	DE66-20095B		Button-lock				$ 17.58
33	W10260207		Stirrer, Assembly		Appelez-nous	-
34	DE31-10173A		Motor-drive				$ 54.87
35	DE63-00196A		Filter-air			Immediately	$ 14.77
