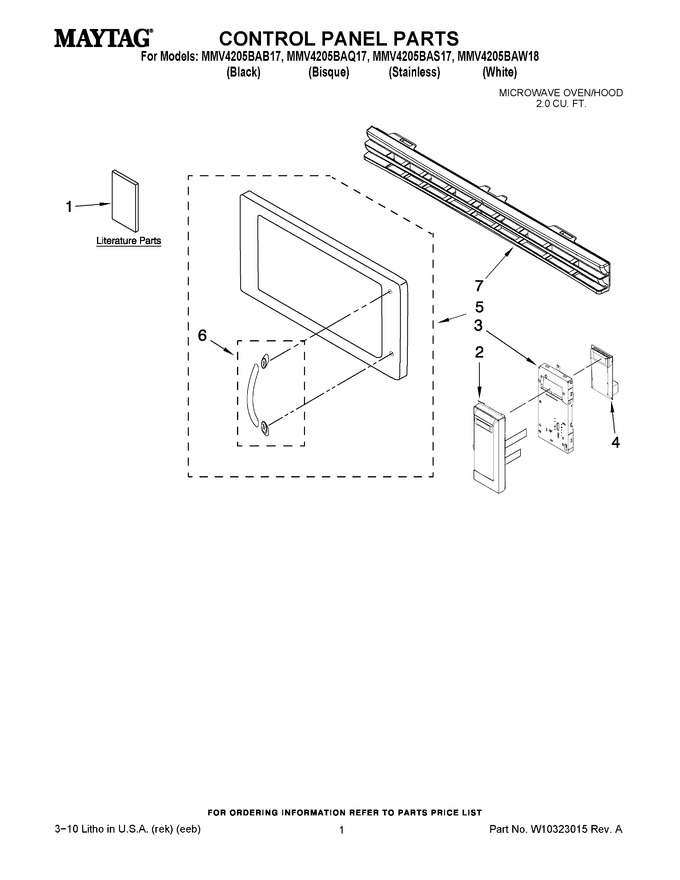

01 - Control Panel Parts
02 - Cabinet And Air Flow Parts
03 - Interior And Ventilation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10177930 | U & C Guide |
|
- | |||||
| 1 | W10181448 | Tech Sheet, Slim |
|
- | |||||
| 2 | DE94-01386A | Panel Asy, Control Membrane, Lens And Bracket (black) |
|
- | |||||
| 2 | DE94-01386B | Panel Asy, Control Membrane, Lens And Bracket (white) |
|
- | |||||
| 2 | DE94-01386D | Panel Asy, Control Membrane, Lens And Bracket (stainless) |
|
- | |||||
| 2 | DE94-01386C | Panel Asy, Control Membrane, Lens And Bracket (bisque) |
|
- | |||||
| 3 | W10181469 | Bracket, Control |
|
- | |||||
| 4 | W10181450 | Microcomputer |
|
$ 0.01 | |||||
| 5 | W10279352 | Complete Door (black) |
|
- | |||||
| 5 | W10279357 | Complete Door (bisque) |
|
- | |||||
| 5 | W10279354 | Complete Door (white) |
|
- | |||||
| 6 | W10279351 | Handle, Door (black) |
|
- | |||||
| 6 | W10279353 | Handle, Door (white) |
|
- | |||||
| 6 | W10279355 | Handle, Door (bisque) |
|
- | |||||
| 7 | DE64-01481A | Grille Assembly (black) |
|
- | |||||
| 7 | DE64-01481B | Grille Assembly (white) |
|
- | |||||
| 7 | DE64-01481D | Grille Assembly (stainless) |
|
- | |||||
| 7 | DE64-01481C | Grille Assembly (bisque) |
|
- |
