01 - Control Panel Parts
02 - Cabinet And Air Flow Parts

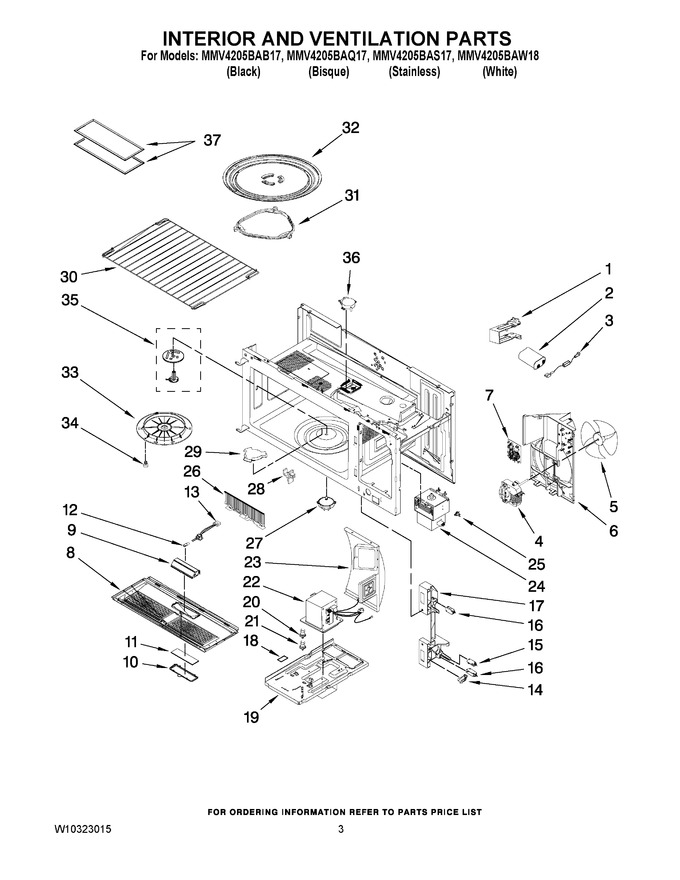

03 - Interior And Ventilation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE61-00115A | Bracket, Capacitor |
|
$ 18.00 | |||||
| 2 | 8206562 | Capacitor (Replaces: 2501-001016) |
|
Immediately | $ 108.83 | ||||
| 3 | DE91-70063D | Diode, H.v. |
|
Immediately | $ 15.89 | ||||
| 4 | W10250841 | Motor, Fan |
|
$ 84.50 | |||||
| 5 | DE31-90051A | Blade-fan |
|
$ 6.95 | |||||
| 6 | W10197780 | Guide, Suction |
|
- | |||||
| 7 | DE96-00400B | Filter, Noise |
|
$ 83.67 | |||||
| 8 | W10192477 | Plate, Bottom (black) |
|
$ 34.71 | |||||
| 8 | W10192097 | Plate, Bottom (bisque) |
|
- | |||||
| 9 | DE61-00407A | Reflector, Lamp |
|
$ 17.58 | |||||
| 10 | DE63-00137C | Holder, Glass (bisque) |
|
$ 9.82 | |||||
| 10 | DE63-00137B | Holder, Glass (black) |
|
$ 25.43 | |||||
| 11 | DE64-00911A | Glass, Lamp |
|
$ 18.00 | |||||
| 12 | 4713-001013 | Lamp, Halogen |
|
Immediately | $ 18.00 | ||||
| 13 | DE47-00006A | Holder-lamp |
|
$ 17.58 | |||||
| 14 | DE66-90106B | Lever, Switch |
|
$ 17.58 | |||||
| 15 | 3405-001033 | Switch-micro |
|
Immediately | $ 17.58 | ||||
| 16 | 3405-001034 | Switch, Micro |
|
Immediately | $ 14.85 | ||||
| 17 | DE66-00168A | Latch Board |
|
Immediately | $ 18.65 | ||||
| 18 | DE63-00008F | Cushion-sponge |
|
- | |||||
| 19 | W10187747 | Plate, Base |
|
- | |||||
| 20 | 555555 | Sw-thermo (Replaces: DE47-20059A) |
|
$ 151.94 | |||||
| 21 | DE47-20034A | Thermostat (2) |
|
Immediately | $ 20.09 | ||||
| 22 | W10250839 | Transformer, H.v. |
|
$ 225.82 | |||||
| 23 | W10197689 | Bracket, Duct Rear |
|
- | |||||
| 24 | WPW10126786 | Magnetron (Replaces: W10126786) |
|
$ 312.35 | |||||
| 25 | 555555 | Thermostat (Replaces: DE47-20007A) |
|
$ 151.94 | |||||
| 26 | W10197680 | Cover, Front |
|
$ 6.72 | |||||
| 27 | DE31-10173A | Motor, Turntable |
|
$ 54.87 | |||||
| 28 | DE61-00375A | Hook, Rack |
|
$ 17.58 | |||||
| 29 | WPDE67-00213A | Coupler, Glider (Replaces: DE67-00213A) |
|
Immediately | $ 6.47 | ||||
| 30 | W10258237 | Rack, Wire |
|
$ 18.83 | |||||
| 31 | DE97-00637A | Guide, Tray |
|
$ 68.82 | |||||
| 32 | DE74-20002A | Tray-cooking |
|
$ 108.28 | |||||
| 33 | W10258285 | Cover-stirrer |
|
- | |||||
| 34 | DE66-20095B | Button-lock |
|
$ 17.58 | |||||
| 35 | W10250840 | Stirrer, Assembly |
|
$ 35.49 | |||||
| 36 | DE31-10173A | Motor-drive |
|
$ 54.87 | |||||
| 37 | DE63-00196A | Filter-air |
|
Immediately | $ 14.77 |
