SELECT A DIAGRAM

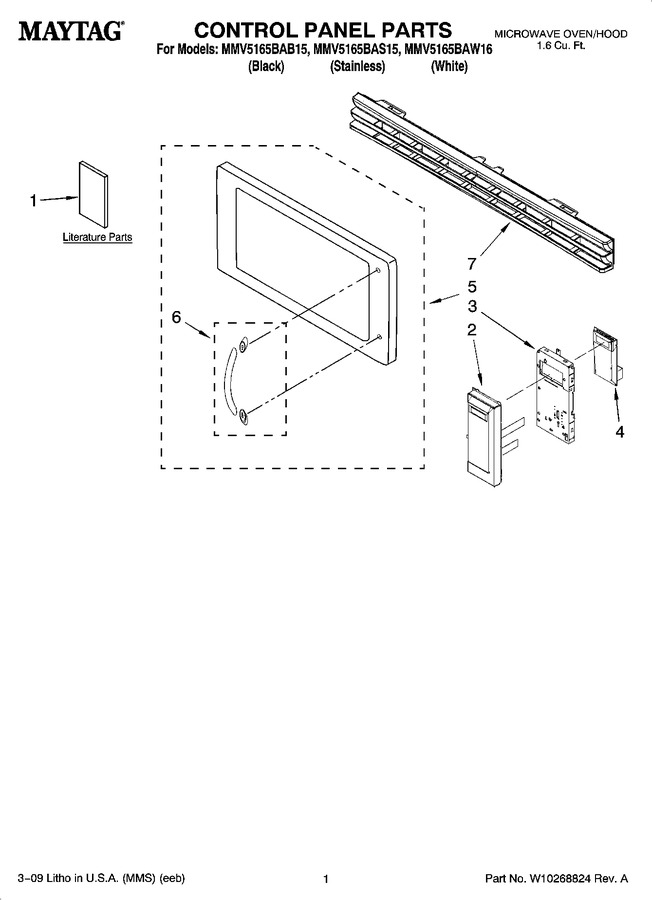

01 - Control Panel Parts
02 - Cabinet And Air Flow Parts
03 - Interior And Ventilation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10177929 | U & C Guide |
|
- | |||||
| 1 | W10182546 | Tech Sheet, Slim |
|
- | |||||
| 2 | DE94-01357E | Panel Asy, Control Membrane, Lens And Bracket (black) |
|
- | |||||
| 2 | DE94-01357H | Panel Asy, Control Membrane, Lens And Bracket (stainless) |
|
$ 0.01 | |||||
| 2 | DE94-01357F | Panel Asy, Control Membrane, Lens And Bracket (white) |
|
- | |||||
| 3 | DE97-00600A | Bracket, Control |
|
- | |||||
| 4 | W10182543 | Microcomputer |
|
- | |||||
| 5 | W10254189 | Complete Door (black) |
|
- | |||||
| 5 | W10254198 | Complete Door (stainless) |
|
- | |||||
| 5 | W10254669 | Complete Door (white) |
|
- | |||||
| 6 | W10189508 | Handle, Door (black) |
|
- | |||||
| 6 | WPW10187840 | Handle, Door (stainless) (Replaces: W10187840) |
|
$ 104.31 | |||||
| 6 | W10189509 | Handle, Door (white) |
|
$ 70.88 | |||||
| 7 | DE64-01426A | Grille Assembly (black) |
|
$ 116.87 | |||||
| 7 | DE64-01426D | Grille Assembly (stainless) |
|
- | |||||
| 7 | DE64-01426B | Grille Assembly (white) |
|
- |
