SELECT A DIAGRAM

01 - Control Panel Parts


02 - Cabinet And Air Flow Parts

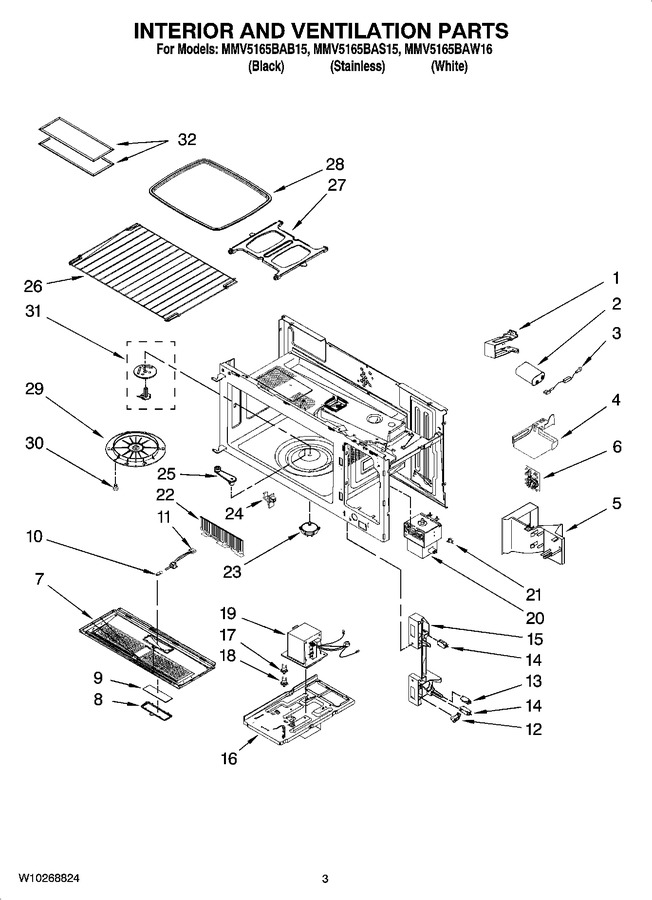

03 - Interior And Ventilation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DE61-00521A		Bracket, Capacitor				$ 2.94
2	2501-001035		Capacitor			Immediately	$ 101.91
3	DE91-70063D		Diode, H.v.   (Replaces: Y0402001554)			Immediately	$ 15.89
4	W10254312		Guide(b), Air		Appelez-nous	-
5	DE61-00753A		Guide(a), Air		Appelez-nous	-
6	W10182544		Filter, Noise		Appelez-nous	-
7	W10254197		Plate, Bottom (black)		Appelez-nous	-
7	W10258365		Plate, Bottom (white)		Appelez-nous	-
8	555555		Holder, Glass (black)   (Replaces: DE63-00100B)				$ 151.94
8	DE63-00100C		Holder, Glass (white)				$ 15.35
9	DE67-40063A		Glass, Lamp			Immediately	$ 18.00
10	4713-001013		Lamp, Halogen			Immediately	$ 18.00
11	DE47-00006A		Holder-lamp				$ 17.58
12	DE66-90106B		Lever, Switch				$ 17.58
13	3405-001033		Switch-micro			Immediately	$ 17.58
14	3405-001034		Switch, Micro			Immediately	$ 14.85
15	DE96-00414A		Latch Board			Immediately	$ 38.81
16	DE96-00415E		Plate, Base		Appelez-nous	-
17	555555		Sw-thermo   (Replaces: DE47-20059A)				$ 151.94
18	DE47-20034A		Thermostat (2)			Immediately	$ 20.09
19	W10254308		Transformer, H.v.		Appelez-nous	-
20	WPW10126786		Magnetron   (Replaces: W10126786)				$ 312.35
21	555555		Thermostat   (Replaces: DE47-20007A)				$ 151.94
22	DE63-00328A		Cover-front		Appelez-nous	-
23	DE31-00041A		Motor, Turntable		Appelez-nous	-
24	DE61-00375A		Hook, Rack				$ 17.58
25	DE97-00602A		Coupler, Glider				$ 24.72
26	DE75-00051A		Rack-wire				$ 105.35
27	DE99-00357A		Guide, Tray				$ 116.95
28	DE63-00383A		Tray-cooking				$ 131.79
29	DE71-60121A		Cover-stirrer				$ 16.82
30	DE66-20095B		Button-lock				$ 17.58
31	W10254310		Stirrer, Assembly		Appelez-nous	-
32	6802A		Filter, Air   (Replaces: W10187748)			Immediately	$ 28.96
