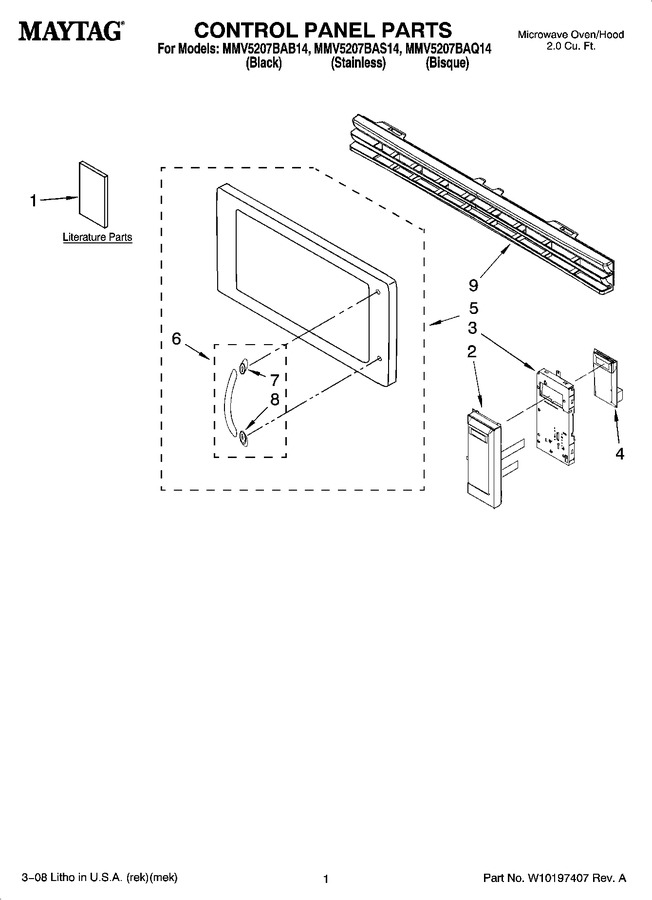

01 - Control Panel Parts
02 - Cabinet And Air Flow Parts
03 - Interior And Ventilation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10177934 | U & C Guide |
|
- | |||||
| 1 | W10182043 | Tech Sheet, Slim |
|
- | |||||
| 2 | DE94-01386J | Panel Asy, Control Membrane, Lens And Bracket (black) |
|
$ 106.04 | |||||
| 2 | DE94-01386M | Panel Asy, Control Membrane, Lens And Bracket (stainless) |
|
- | |||||
| 2 | DE94-01386L | Panel Asy, Control Membrane, Lens And Bracket (bisque) |
|
- | |||||
| 3 | W10181469 | Bracket, Control |
|
- | |||||
| 4 | W10198000 | Microcomputer |
|
$ 220.11 | |||||
| 5 | W10198001 | Complete Door (black) |
|
- | |||||
| 5 | W10199983 | Complete Door (stainless) |
|
$ 133.42 | |||||
| 5 | W10199982 | Complete Door (bisque) |
|
- | |||||
| 6 | W10189508 | Handle, Door (black) |
|
- | |||||
| 6 | WPW10187840 | Handle, Door (stainless) (Replaces: W10187840) |
|
$ 104.31 | |||||
| 6 | W10198002 | Handle, Door (bisque) |
|
$ 66.94 | |||||
| 7 | W10189545 | Handle, Base Upper |
|
$ 20.30 | |||||
| 8 | W10189546 | Handle, Base Lower |
|
- | |||||
| 9 | DE64-01454A | Grille Assembly (black) |
|
- | |||||
| 9 | 555555 | Grille Assembly (stainless) (Replaces: DE64-01454D) |
|
$ 151.94 | |||||
| 9 | DE64-01454C | Grille Assembly (bisque) |
|
- |
