01 - Control Panel Parts

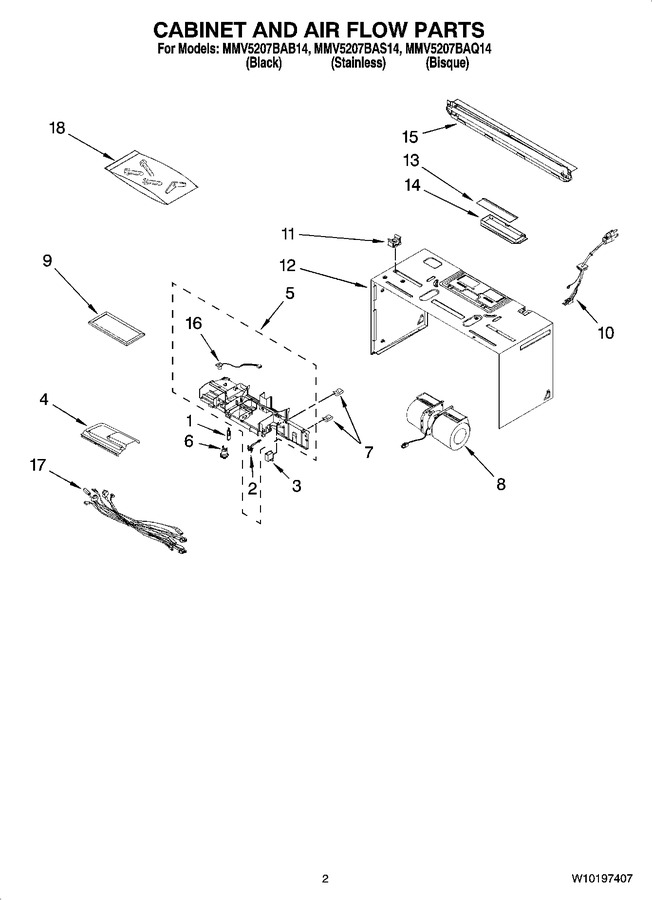

02 - Cabinet And Air Flow Parts
03 - Interior And Ventilation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4713-001165 | Lamp |
|
Immediately | $ 33.30 | ||||
| 2 | DE47-00032B | Holder, Lamp |
|
$ 34.51 | |||||
| 3 | DE59-50002A | Capacitor-motor |
|
Immediately | $ 27.34 | ||||
| 4 | W10197628 | Bracket, Duct (u) |
|
- | |||||
| 5 | DE97-00635B | Assy, Duct Upper |
|
- | |||||
| 6 | 555555 | Thermostat (Replaces: DE47-20059A) |
|
$ 151.94 | |||||
| 7 | DE60-30063A | Nut-mounting |
|
$ 11.37 | |||||
| 8 | W10181452 | Motor, Fan Assy |
|
$ 189.00 | |||||
| 9 | 555555 | Filter-charcoal (Replaces: DE63-00367D) |
|
$ 151.94 | |||||
| 10 | DE96-00218A | Cord, Power |
|
$ 78.75 | |||||
| 11 | DE92-90508A | Holder Nut, Assy |
|
Immediately | $ 17.58 | ||||
| 12 | W10187744 | Case, Outer (black) |
|
$ 182.57 | |||||
| 12 | W10199858 | Case, Outer (bisque) |
|
- | |||||
| 13 | W10197773 | Damper, Assembly |
|
$ 29.38 | |||||
| 14 | DE72-40022A | Plate, Damper |
|
Immediately | $ 12.07 | ||||
| 15 | 555555 | Plate-mounting (Replaces: DE70-00378A) |
|
$ 151.94 | |||||
| 16 | DE32-60011A | Sensor-gas |
|
Immediately | $ 86.27 | ||||
| 17 | DE96-00533A | Main Harness |
|
- | |||||
| 18 | DE92-90505E | Install, Hardware |
|
$ 41.40 | |||||
| NI | W10197644 | Template, Wall |
|
- | |||||
| NI | DE68-03144B | Template, Top |
|
- |
