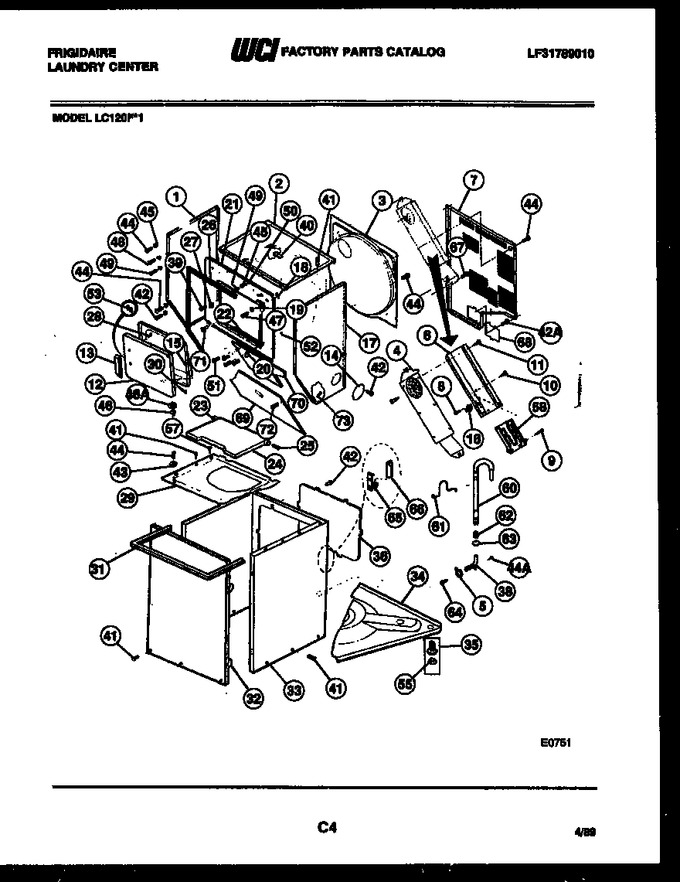

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
48	08006670		Screw (2)		Appelez-nous	-
49	08006546		Screw (6)		Appelez-nous	-
50	08015790		Spacer - Optional (2)		Appelez-nous	-
51	08027664		Screw-hinge/panel		Appelez-nous	-
52	01126075		Nut-acorn		Appelez-nous	-
53	08027665		Strike Plate-door		Appelez-nous	-
55	08004120		Pad - Leveling Leg (4)		Appelez-nous	-
57	08004089		Screw - Brace (2)		Appelez-nous	-
58	08015795		Heater Assembly		Appelez-nous	-
60	3161454		Hose-drain		Appelez-nous	-
61	08002362		Retainer Assy.		Appelez-nous	-
62	08011277		Bushing - Drain Hose		Appelez-nous	-
63	08002361		Clamp - Hose		Appelez-nous	-
64	08014555		Check Valve - Drain Hose		Appelez-nous	-
65	08014902		Bracket - Capacitor		Appelez-nous	-
66	08014903		Capacitor		Appelez-nous	-
67	08006547		Screw		Appelez-nous	-
68	08015822		Terminal Cover		Appelez-nous	-
69	08015815		Pnl-access (white)		Appelez-nous	-
70	3016443		Cover - Lint Housing		Appelez-nous	-
71	08004125		Screw		Appelez-nous	-
72	08011318		Screw (2)		Appelez-nous	-
73	08006556		Screw		Appelez-nous	-
*44674	08001665		Pnt-6 Oz-white		Appelez-nous	-
*44674	08027667		Insulation-rear & Vent Panels		Appelez-nous	-
51A	08006549		Screw-hinge/lint Hsg.		Appelez-nous	-
63A	08027666		Tie-drain Hose (non-illustrated)		Appelez-nous	-
