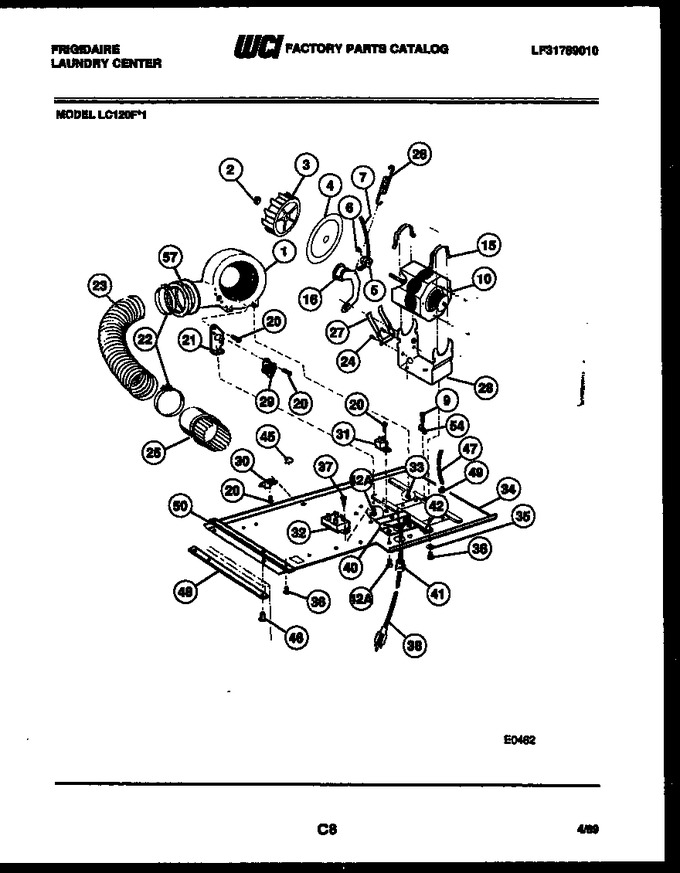

05 - Dryer Motor, Blower And Belt


06 - Tubs, Water Valve And Lid Switch


07 - Washer Drive System And Pump


08 - Transmission Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3016461		Housing - Blower		Appelez-nous	-
2	1128554		Spring Clip		Appelez-nous	-
3	08015787		Wheel - Blower		Appelez-nous	-
4	0639342		Plate-blower Housing		Appelez-nous	-
5	08015796		Pulley-motor		Appelez-nous	-
6	08027520		Set Screw		Appelez-nous	-
7	00639357		Belt		Appelez-nous	-
9	08006556		Screw - Ground - Timer/base		Appelez-nous	-
10	3203091		Motor & Switch Assy. - Dryer		Appelez-nous	-
15	08002293		Clip-motor (2)		Appelez-nous	-
16	08015846		Idler Arm & Wheel Assy.		Appelez-nous	-
20	08011280		Screw		Appelez-nous	-
21	3016464		Bracket - Thermo Mounting		Appelez-nous	-
22	5436685		Clamp-tube (2)		Appelez-nous	-
23	00633925		Exhaust Tube		Appelez-nous	-
24	08004646		Screw - Retainer		Appelez-nous	-
25	3016465		Extension		Appelez-nous	-
26	08015828		Spring-idler		Appelez-nous	-
27	08015824		Retainer		Appelez-nous	-
28	3016466		Cradle Motor		Appelez-nous	-
29	08004644		Thermostat-control		Appelez-nous	-
30	01127285		Clip		Appelez-nous	-
31	08010853		Buzzer		Appelez-nous	-
32	3016491		Relay Assy.		Appelez-nous	-
33	08006553		Screw		Appelez-nous	-
34	08027503		Base - Dryer		Appelez-nous	-
35	08002468		Washer-motor		Appelez-nous	-
36	08006685		Screw (6)		Appelez-nous	-
37	08004649		Screw		Appelez-nous	-
38	08004650		Power Cord		Appelez-nous	-
40	08015835		Bracket		Appelez-nous	-
41	08004647		Bushing		Appelez-nous	-
42	08006566		Sems Screw		Appelez-nous	-
45	08006557		Retainer (2)		Appelez-nous	-
46	08006685		Screw (4)		Appelez-nous	-
47	08011257		Tube - Pressure		Appelez-nous	-
48	3016468		Brace - Dryer Base (2)		Appelez-nous	-
49	08006559		Connector		Appelez-nous	-
50	3016469		Plate		Appelez-nous	-
54	08002341		Terminal		Appelez-nous	-
57	3016471		Gasket		Appelez-nous	-
*44723	08027675		Nylube Lubricant (for Idler Wheel)		Appelez-nous	-
20A	08011280		Screw		Appelez-nous	-
20B	08004646		Screw-clip/base		Appelez-nous	-
20C	08002339		Screw - Bracket/housing		Appelez-nous	-
35A	08001557		Lock Washer		Appelez-nous	-
42A	08004646		Screw (4)		Appelez-nous	-
