Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8015809 Panel-l.h.-dryer (white) Appelez-nous -
1 8015811 Panel-l.h.-dryer (almond) Appelez-nous -
2 8027498 Pnl-top-dryer (almond) Appelez-nous -
2 8027496 Pnl-top-dryer (white) Appelez-nous -
3 3017111 Pnl-rear Appelez-nous -
4 8015820 Duct-front Appelez-nous -
5 8004057 Clamp-hose/coupler Appelez-nous -
6 8015854 Duct-rear Appelez-nous -
7 3016426 Panel-ventilation Appelez-nous -
8 8006547 Screw Appelez-nous -
9 8004061 Screw (2) Appelez-nous -
10 8006547 Screw (4) Appelez-nous -
11 8006547 Screw (11) Appelez-nous -
12 8027652 Door-outer (white) Appelez-nous -
12 8027654 Door-outer (almond) Appelez-nous -
13 8027657 Handle-door (almond) Appelez-nous -
13 8027655 Handle-door (white) Appelez-nous -
14 2832585 Cover-exhaust (white) Appelez-nous -
14 1133370 Cover-exhaust-white Appelez-nous -
15 8027660 Door Inner (white) Appelez-nous -
15 8027662 Door-inner (almond) Appelez-nous -
16 8015856 Thermostat-safety Appelez-nous -
17 8015808 Panel-r.h.-dryer (almond) Appelez-nous -
17 8015806 Panel-r.h.-dryer (white) Appelez-nous -
18 0639710 Speedclip Appelez-nous -
19 0639712 Hinge-top Appelez-nous -
20 0639713 Hinge-lower Appelez-nous -
21 3016436 Pnl - Front Dryer (white) Appelez-nous -
21 3016438 Pnl - Front Dryer (almond) Appelez-nous -
22 0639378 Door Seal Appelez-nous -
23 8015844 Screw Appelez-nous -
24 8007743 Lid-washer (almond) Appelez-nous -
24 8007739 Lid-washer (white) Appelez-nous -
25 8015844 Screw Appelez-nous -
26 8015857 Trim Strip-dryer Appelez-nous -
27 8027658 Spring Latch Appelez-nous -
28 8006546 Screw-handle (2) Appelez-nous -
29 3017114 Pnl - Top Washer (almond) Appelez-nous -
29 3017112 Pnl - Top Washer (white) Appelez-nous -
30 8004125 Screw-door (2) Appelez-nous -
31 8015789 Trim Strip-washer Appelez-nous -
32 2833351 Pnl-front-washer (white) Appelez-nous -
32 2833352 Pnl-front-washer (almond) Appelez-nous -
33 8007754 Cabinet-washer (almond) Appelez-nous -
33 8007750 Cabinet-washer (white) Appelez-nous -
34 8004025 Base Washer Appelez-nous -
35 3161045 Leveling Leg Assy. (4) Appelez-nous -
36 8015788 Pnl-rear Access Appelez-nous -
38 3161452 Coupler - Drain Hose Special Order $ 34.39

39 8027659 Rivet-latch/panel (2) Appelez-nous -
40 1126012 Pad-drum Appelez-nous -
41 8006670 Screw (19) Appelez-nous -
42 5436605 Screw (16) Appelez-nous -
43 0639344 Retainer Appelez-nous -
44 8011280 Screw (23) Appelez-nous -
45 0639344 Retainer Appelez-nous -
46 8027663 Hinge Pin (2) Appelez-nous -
47 8006549 Screw (2) Appelez-nous -
48 8006670 Screw (2) Appelez-nous -
49 8006546 Screw (6) Appelez-nous -
50 8015790 Spacer (optional) (2) Appelez-nous -
51 8027664 Screw-hinge/front Panel Appelez-nous -
52 1126075 Acorn Nut Appelez-nous -
53 8027665 Strike Plate Appelez-nous -
55 8004120 Pad-leveling Leg (4) Appelez-nous -
57 8004089 Screw-brace (2) Appelez-nous -
58 8015855 Heater Assembly Appelez-nous -
60 3161454 Hose - Drain Assy. Appelez-nous -
61 8002362 Retainer, Drain Hose Appelez-nous -
62 8011277 Bushing-drain Hose Appelez-nous -
63 8002361 Clamp-hose Appelez-nous -
64 8014555 Check Valve-drain Hose Appelez-nous -
65 8014902 Bracket, Capacitor Appelez-nous -
66 8014903 Capacitor Appelez-nous -
67 8006547 Screw Appelez-nous -
68 8015822 Cover-terminal Appelez-nous -
69 8015817 Pnl-access-dryer (almond) Appelez-nous -
69 8015815 Pnl-access-dryer (white) Appelez-nous -
70 3016443 Cover - Lint Housing Appelez-nous -
71 8004125 Screw Appelez-nous -
72 8011318 Screw (2) Appelez-nous -
73 8006556 Screw Appelez-nous -
*16916 8027667 Insulation-rear & Vent Panels Appelez-nous -
*16916 8001665 Paint-6 Oz.-white Appelez-nous -
*16916 3016444 Insulation - Aluminum Back Appelez-nous -
*16916 8001666 Paint-6 Oz.-almond Appelez-nous -
42A 8002339 Screw (3) Appelez-nous -
44A 3161453 Screw Appelez-nous -
46A 3016441 Washer - Spacer Appelez-nous -
51A 8006549 Screw-hinge/lint Hsg. & Ft. Panel Appelez-nous -
63A 8027366 Tie-drain Hose (non-illustrated) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

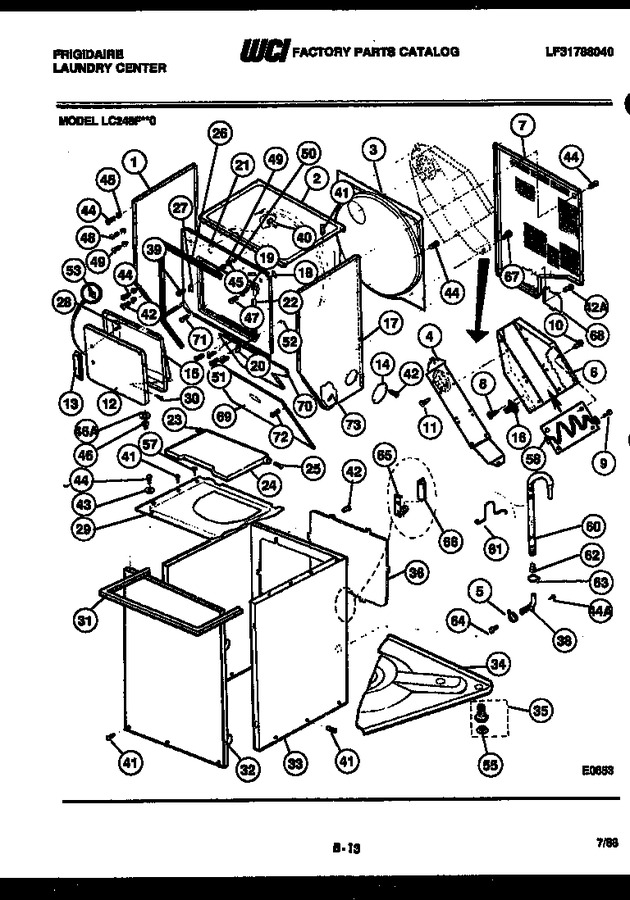

Diagram for LC248FL0
