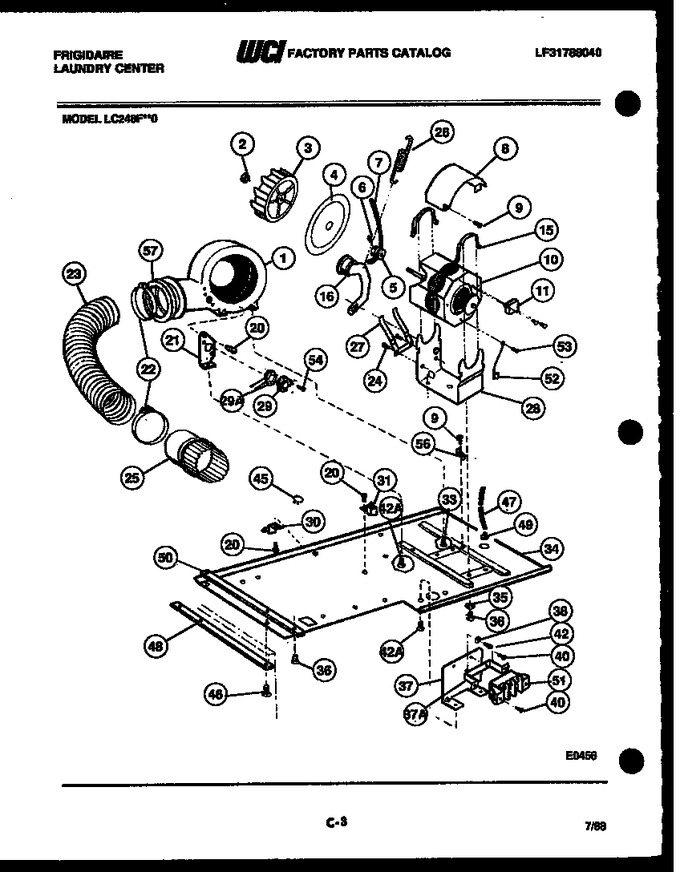

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3016461		Housing - Blower		Appelez-nous	-
2	1128554		Spring Clip		Appelez-nous	-
3	8015787		Wheel-blower		Appelez-nous	-
4	0639342		Plate-blower Housing		Appelez-nous	-
5	8015796		Pulley-motor		Appelez-nous	-
6	8027520		Set Screw		Appelez-nous	-
7	0639357		Belt		Appelez-nous	-
8	3016462		Shield-motor		Appelez-nous	-
9	8001676		Screw-shield/motor		Appelez-nous	-
9	8006556		Screw-ground-timer/base		Appelez-nous	-
10	3016463		Motor & Switch Assy-dryer		Appelez-nous	-
11	8014798		Switch-motor (ge)		Appelez-nous	-
15	8002293		Clip-motor (2)		Appelez-nous	-
16	8015846		Idler Arm & Wheel Assy		Appelez-nous	-
20	8004646		Screw-clips/base		Appelez-nous	-
20	8002339		Screw-bracket/housing		Appelez-nous	-
20	8011280		Screw-buzzer/base		Appelez-nous	-
21	3016464		Bracket - Thermo Mounting		Appelez-nous	-
22	5436685		Clamp-tube (2)		Appelez-nous	-
23	0633925		Exhaust Tube		Appelez-nous	-
24	8004646		Screw-retainer		Appelez-nous	-
25	3016465		Extension		Appelez-nous	-
26	8015828		Spring-idler Arm		Appelez-nous	-
27	8015824		Retainer		Appelez-nous	-
28	3016466		Cradle Assembly-motor		Appelez-nous	-
29	8015847		Thermostat-control		Appelez-nous	-
30	1127285		Clip (2)		Appelez-nous	-
31	8010853		Buzzer		Appelez-nous	-
33	8006553		Screw		Appelez-nous	-
34	8027503		Base-dryer		Appelez-nous	-
35	8002468		Washer-motor Cradle		Appelez-nous	-
36	8006658		Screw (6)		Appelez-nous	-
37	8015799		Bracket-terminal Block		Appelez-nous	-
38	8001572		Cup Washer		Appelez-nous	-
40	8011280		Screw-term Block Bracket/brkt (2)		Appelez-nous	-
40	5436605		Screw-term Block/bracket (2)		Appelez-nous	-
42	8004113		Screw		Appelez-nous	-
45	8006557		Retainer (2)		Appelez-nous	-
46	8006685		Screw (4)		Appelez-nous	-
47	8011257		Tube-pressure		Appelez-nous	-
48	3016468		Brace - Dryer Base (2)		Appelez-nous	-
49	8006559		Connector		Appelez-nous	-
50	3016469		Plate		Appelez-nous	-
51	3016470		Terminal Block		Appelez-nous	-
52	8027674		Wire-ground		Appelez-nous	-
53	8001676		Screw		Appelez-nous	-
54	8027477		Screw (2)		Appelez-nous	-
56	8002341		Terminal		Appelez-nous	-
57	3016471		Gasket		Appelez-nous	-
*16921	8027675		Nylube Lubricant (for Idler Wheel)		Appelez-nous	-
29A	8008892		External Heater-thermo		Appelez-nous	-
35A	8001557		Lockwasher		Appelez-nous	-
37A	3016467		Bracket - Term Block/bracket		Appelez-nous	-
42A	8004646		Screw (4)		Appelez-nous	-
