SELECT A DIAGRAM

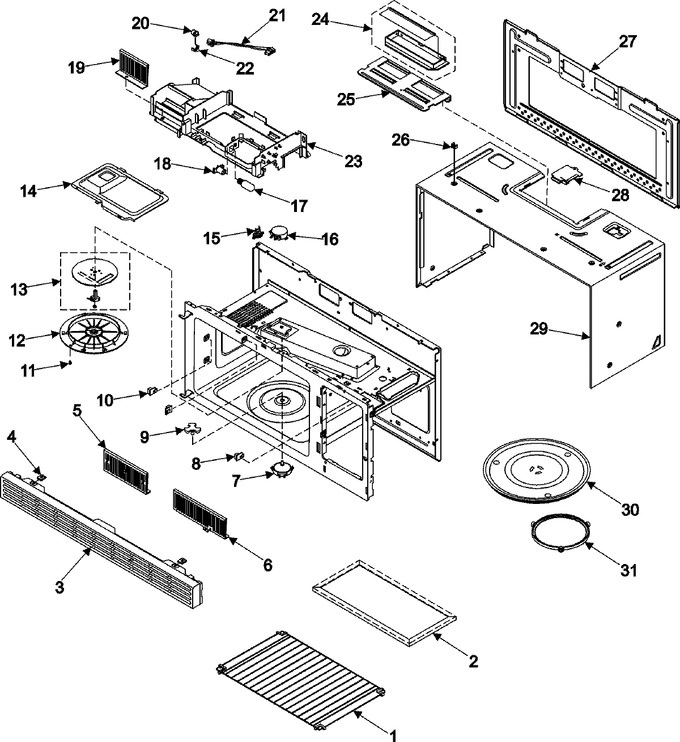

01 - Body/cavity/elements


02 - Door Assembly


03 - Internal Controls/latch Asy/base


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DE97-00096A		Assy-rack Wire		Appelez-nous	-
2	555555		Filter-charocal   (Replaces: DE63-30016A)				$ 151.94
3	DE64-00325C		Grille		Appelez-nous	-
4	DE65-00004A		Clip-grille				$ 2.58
5	DE61-00027A		Bracket-grille		Appelez-nous	-
6	DE71-60384A		Cover-front		Appelez-nous	-
7	555555		Motor, Drive   (Replaces: DE31-10172A)				$ 151.94
8	DE61-00040B		Holder-rack(b)				$ 109.77
9	DE67-60012A		Coupler				$ 17.58
10	DE61-00039B		Holder-rack(a)				$ 19.40
11	DE66-20095B		Button-lock				$ 17.58
12	DE71-60121A		Cover-stirrer				$ 16.82
13	DE97-00178B		Assy-stirrer				$ 21.43
14	DE61-50469A		Bracket-duct Upper		Appelez-nous	-
15	555555		Thermostat   (Replaces: DE47-20196A)				$ 151.94
16	DE31-10173A		Motor-drive				$ 54.87
17	4713-001013		Lamp-incandescent			Immediately	$ 18.00
18	DE47-00006A		Holder-lamp				$ 17.58
19	DE61-50542A		Bracket-filter		Appelez-nous	-
20	DE32-60013A		Sensor-gas				$ 94.70
21	DE39-40678A		Wire Harness-s				$ 29.11
22	DE61-90111A		Holder-sensor				$ 0.88
23	DE72-50098A		Duct-upper		Appelez-nous	-
24	555555		Assy-hood Damper   (Replaces: DE92-90242A)				$ 151.94
25	DE61-50545A		Bracket-v/t Motor				$ 17.58
26	DE92-90508A		Assy-holder Nut			Immediately	$ 17.58
27	DE61-50279A		Bracket-tco		Appelez-nous	-
28	DE61-50507A		Bracket-power Cord		Appelez-nous	-
29	DE70-10017J		Panel-outer		Appelez-nous	-
30	DE74-20016A		Tray, Glass Cooking				$ 110.72
31	DE92-90495A		Assy-guide Roller				$ 42.55

    View Diagram in Separate Window       Print Part List
