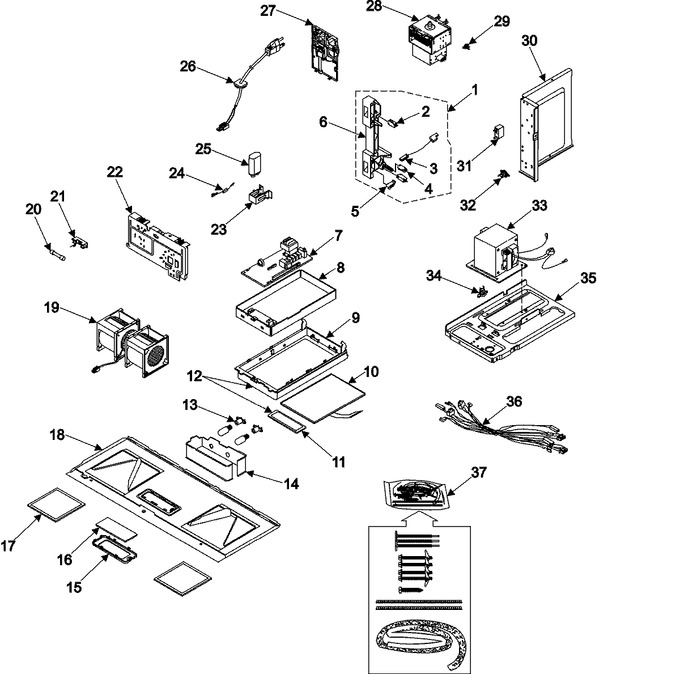

01 - Body/cavity/elements
02 - Door Assembly
03 - Internal Controls/latch Asy/base
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE96-00154A | Assy Body Latch |
|
$ 54.75 | |||||
| 2 | 3405-001033 | Switch-micro |
|
Immediately | $ 17.58 | ||||
| 3 | DE39-40674A | Wire Harness-b |
|
- | |||||
| 4 | 3405-001034 | Switch, Micro (125/250 Vac) |
|
Immediately | $ 14.85 | ||||
| 5 | DE66-90106B | Lever-switch Lower |
|
$ 17.58 | |||||
| 6 | DE61-00249A | Body-latch |
|
$ 43.88 | |||||
| 7 | RA-7SMT-05 | Assy Pcb Parts |
|
- | |||||
| 8 | DE97-00255A | Assy-bkt C/panel |
|
- | |||||
| 9 | DE64-00331C | Control-panel |
|
- | |||||
| 10 | DE34-00038P | Switch Membrane |
|
- | |||||
| 11 | DE64-00416A | Window-display |
|
$ 5.60 | |||||
| 12 | DE94-00587C | Assy Control-panel |
|
- | |||||
| 13 | DE47-00006A | Holder-lamp |
|
$ 17.58 | |||||
| 14 | DE61-50464A | Bracket-bottom Lamp |
|
- | |||||
| 15 | DE71-60385C | Cover-glass |
|
- | |||||
| 16 | DE67-40152A | Glass-cooktop Lamp |
|
- | |||||
| 17 | DE63-30011A | Filter-air |
|
Immediately | $ 26.60 | ||||
| 18 | DE97-00248B | Assy-base Bottom;ssotr (1.6 Cu |
|
- | |||||
| 19 | DE31-10178A | Motor Ventilation (Replaces: DE31-10178E) |
|
$ 116.33 | |||||
| 20 | ABC20 | Cartridge, Fuse (Replaces: 3601-001198) |
|
Immediately | $ 10.31 | ||||
| 21 | 3602-001025 | Holder, Fuse |
|
- | |||||
| 22 | DE61-50540A | Bracket-air Guide-a |
|
- | |||||
| 23 | DE61-50120A | Bracket-hvc |
|
- | |||||
| 24 | DE91-70063D | Assy-h.v.d. (Replaces: DE91-70063A) |
|
Immediately | $ 15.89 | ||||
| 25 | 2501-001011 | Capacitor |
|
Immediately | $ 74.17 | ||||
| 26 | DE39-10102A | Power Cord |
|
- | |||||
| 27 | 555555 | Assy-motor Fan (Replaces: DE92-90552C) |
|
$ 151.94 | |||||
| 28 | YOM75P10ESS | Magnetron |
|
- | |||||
| 29 | 555555 | Thermostat (Replaces: DE47-20007A) |
|
$ 151.94 | |||||
| 30 | DE72-50084A | Duct-side |
|
- | |||||
| 31 | DE59-50002A | Capacitor-motor |
|
Immediately | $ 27.34 | ||||
| 32 | DE47-20020A | Thermostat |
|
$ 17.58 | |||||
| 33 | DE26-10136A | Trans H.v |
|
$ 233.13 | |||||
| 34 | 555555 | Sw-thermo (Replaces: DE47-20059A) |
|
$ 151.94 | |||||
| 35 | DE80-10121B | Base-plate |
|
- | |||||
| 36 | DE39-00024A | Wire Harness-a |
|
- | |||||
| 37 | DE92-90505D | Assy-hard Ware |
|
$ 40.02 |
