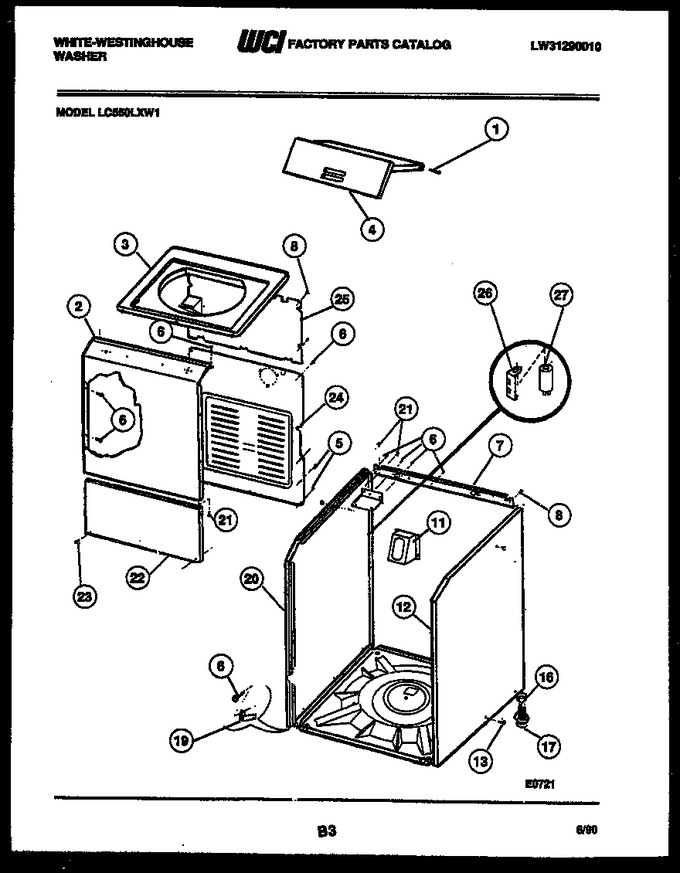

02 - Cabinet Parts


03 - Drain And Recirculate Parts


04 - Tubs And Water Inlet


05 - Transmission Parts


06 - Console And Control Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	F139410000		Screw (2)		Appelez-nous	-
2	3205915		Panel-control (almond)		Appelez-nous	-
3	3205917		Panel-top (almond)		Appelez-nous	-
4	3200866		Bi-fold Lid Assy. (almond)		Appelez-nous	-
5	3015671		Screw (8)		Appelez-nous	-
6	3015671		Screw-control Pnl/sides (4)		Appelez-nous	-
7	F138840226		Support-rear Cabinet		Appelez-nous	-
8	F132144000		Screw-support/side Pnls (4)		Appelez-nous	-
11	F000078139		Bracket-water Valve		Appelez-nous	-
12	3205920		Panel Rh Side (white)		Appelez-nous	-
12	3205921		Panel Rh Side (almond)		Appelez-nous	-
13	F066234000		Screw (6)		Appelez-nous	-
14	Q000199005		Base-cabinet		Appelez-nous	-
16	F000137033		Leveling Leg (4)		Appelez-nous	-
17	F134166000		Leg Cushion (part Of Reference No. 16, But May Be Ordere		Appelez-nous	-
19	3004791		Bracket		Appelez-nous	-
20	3205923		Pnl-lh Side (almond)		Appelez-nous	-
21	3015671		Sems Screw (4)		Appelez-nous	-
22	F138855039		Pnl-access (almond)		Appelez-nous	-
23	F130139000		Chrome Screw (2)		Appelez-nous	-
24	3205925		Pnl-lower Rear		Appelez-nous	-
25	3205927		Pnl-upper Rear		Appelez-nous	-
26	F140401000		Bracket-capacitor		Appelez-nous	-
27	F140443000		Capacitor		Appelez-nous	-
*30825	3161012		Paint-6oz.-almond		Appelez-nous	-
6A	3015671		Screw-brkt/cabinet		Appelez-nous	-
6B	F130439000		Screw-brkt/rear Support (2)		Appelez-nous	-
6C	3015671		Screw - Cabinet/base - Front Ground (2)		Appelez-nous	-
6D	3015671		Screw-top Pnl/rear Support (2)		Appelez-nous	-
6E	3015671		Screw-back Pnl/support-top Center		Appelez-nous	-
6F	3015671		Screw-upper Back Pnl./lower Bk. Pnl.		Appelez-nous	-
6G	3015671		Screw-back Pnl/base (2)		Appelez-nous	-
8A	F130439000		Screw-support/lh Side Pnl		Appelez-nous	-
8B	F132144000		Screw-back Pnl/support (2)		Appelez-nous	-
