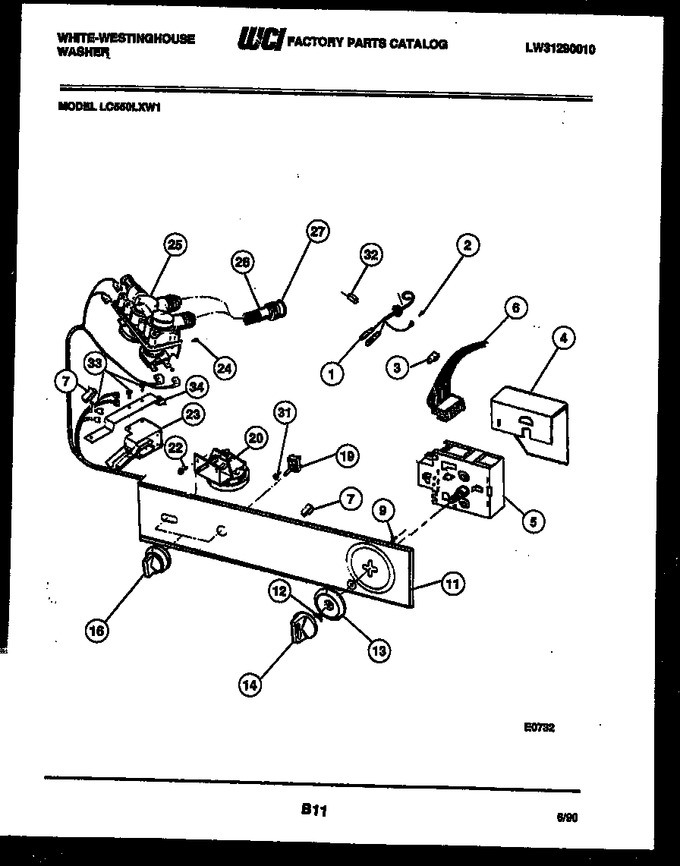

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3205930		Cord-service		Appelez-nous	-
2	F131225000		Screw, Ground		Appelez-nous	-
3	F08008454		Clip-harness		Appelez-nous	-
4	3205931		Shield-timer		Appelez-nous	-
5	3015649		Timer		Appelez-nous	-
6	3205932		Harness		Appelez-nous	-
7	F131347000		Clip-harness (9)		Appelez-nous	-
9	F060796000		Screw (2)		Appelez-nous	-
11	F000139096		Trimplate Assy.		Appelez-nous	-
12	Q000199081		Spacer-timer		Appelez-nous	-
13	Q000199019		Pointer-timer		Appelez-nous	-
14	Q000199020		Knob-timer		Appelez-nous	-
16	F078949000		Knob-rotary (2)		Appelez-nous	-
19	F137241000		Switch-water Temp		Appelez-nous	-
20	5303209227		Switch-pressure		Appelez-nous	-
22	08001689		Screw		Appelez-nous	-
23	3017110		Lid Lock And Switch Assy.		Appelez-nous	-
24	F141175000		Sems Screw (2)		Appelez-nous	-
25	134190200		Water Valve   (Replaces: 5303207418)			Immediately	$ 153.09
26	Q000600924		Hose Inlet (2)		Appelez-nous	-
27	F139814000		Washer Hose (4)		Appelez-nous	-
31	F135021000		Screw (2)		Appelez-nous	-
32	F000077094		Clip		Appelez-nous	-
33	F137749000		Screw-lid Lock (2)		Appelez-nous	-
34	3018393		Bracket-lid Lock And Switch		Appelez-nous	-
*30841	3205935		U-clip-shield To Side (2)		Appelez-nous	-
*30841	3205934		Shield-lid Lock		Appelez-nous	-
*30841	3205933		Shield-pressure Switch		Appelez-nous	-
*30841	08011251		Screw-shield To Top (4)		Appelez-nous	-
19A	3018800		Shield-water Temp Sw. (non-illustrated)		Appelez-nous	-
25A	F076138-15		Coil And Bracket Assy. (part Of Reference No. 25, But May Be Ordered Separately.) (2)		Appelez-nous	-
25B	F076138-11		Screen (part Of Reference No. 25, But May Be Ordered Separately.) (2)		Appelez-nous	-
33A	F130439000		Screw Brkt/side Pnl		Appelez-nous	-
