SELECT A DIAGRAM

01 - Cabinet Parts

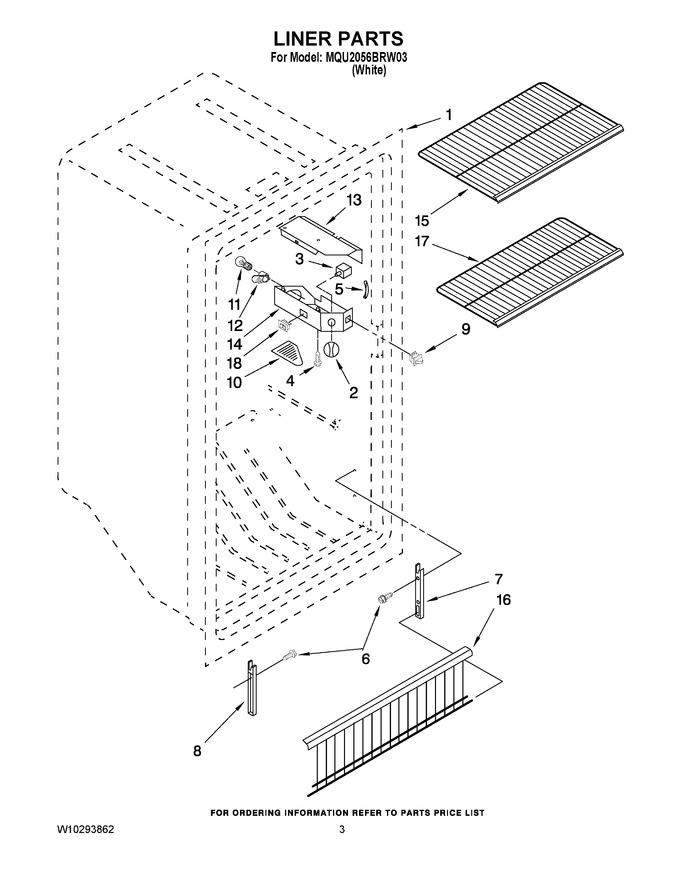

02 - Liner Parts


03 - Unit Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	3-82390-001		Knob, Control   (Replaces: 8210348)				$ 25.80
3	WP4-83053-001		Thermostat   (Replaces: 8210395)				$ 218.46
4	W10709795		Screw   (Replaces: 4390511)				$ 11.82
5	WP2196003		Tubing, Thermostat   (Replaces: 8210246)				$ 7.16
6	4356891		Screw		Appelez-nous	-
7	4357293		Support Rh				$ 48.96
8	4356890		Support Lh		Appelez-nous	-
9	W11384469		Switch, Light   (Replaces: 4390513)			Immediately	$ 33.51
10	8210349		Lens Light				$ 33.01
11	W11679940		Bulb, Light   (Replaces: 4390465)			Immediately	$ 10.17
12	WP3-82393-001		Socket, Light   (Replaces: 8210350)				$ 96.62
13	8210351		Shield, Light				$ 42.03
14	8210406		Box, Control		Appelez-nous	-
15	R0213227		Shelf, Upper Wire		Appelez-nous	-
16	68001626		Gate		Appelez-nous	-
17	W10279027		Shelf, Lower Wire		Appelez-nous	-
18	8210370		Switch, Alarm (illuminated)		Appelez-nous	-
