01 - Cabinet Parts


02 - Liner Parts

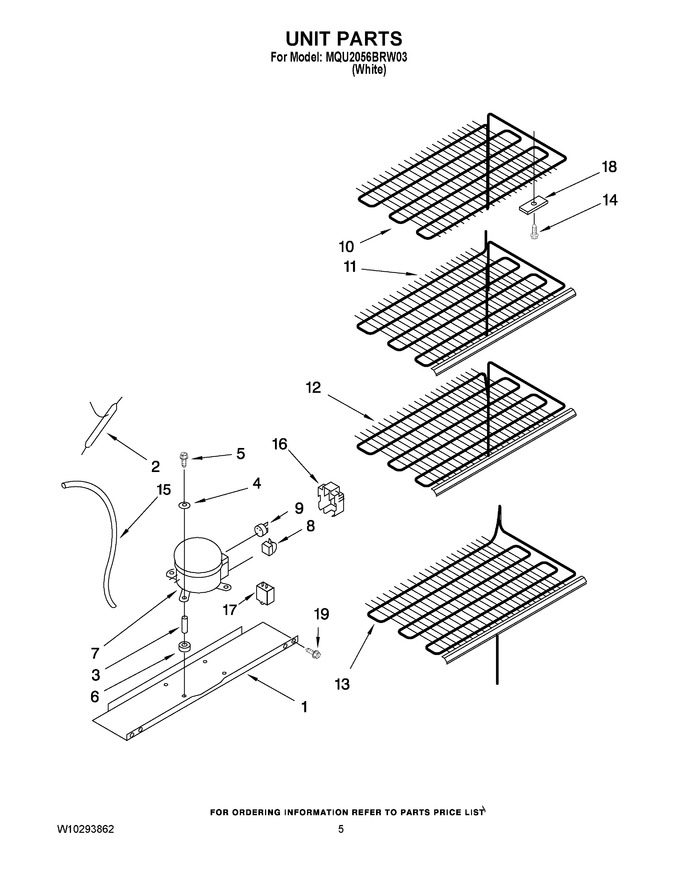

03 - Unit Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4357095		Pan, Compressor		Appelez-nous	-
2	4001		Drier   (Replaces: 4357299)			Immediately	$ 9.64
3	4356846		Sleeve				$ 12.86
4	4356847		Washer		Appelez-nous	-
5	8210220		Bolt, Compressor		Appelez-nous	-
6	4356335		Grommet		Appelez-nous	-
7	W10309994		Compressor   (Replaces: 4356775)			Immediately	$ 551.61
8	4356738		Relay				$ 53.17
9	2-34286-021		Overload   (Replaces: 4356776)				$ 123.71
10	4-82417-001		Evaporator Top   (Replaces: 8210412)		Appelez-nous	-
11	4-82417-001		Evaporator Shelf   (Replaces: 8210254)		Appelez-nous	-
12	4-82417-001		Evaporator Shelf   (Replaces: 8210255)		Appelez-nous	-
13	4-82417-001		Evaporator Bott   (Replaces: 8210256)		Appelez-nous	-
14	WP3-24004-109		Screw   (Replaces: 4357223)				$ 7.25
15	4390809		Heat Exchanger		Appelez-nous	-
16	4356777		Cover		Appelez-nous	-
17	3-35956-013		Capacitor   (Replaces: 8210224)				$ 103.82
18	4357057		Washer		Appelez-nous	-
19	WP3-24838-048		Screw   (Replaces: 4357277)				$ 7.00
NI	N/P		Refrigerant Charge (6.2 Oz. (r-134a))		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
