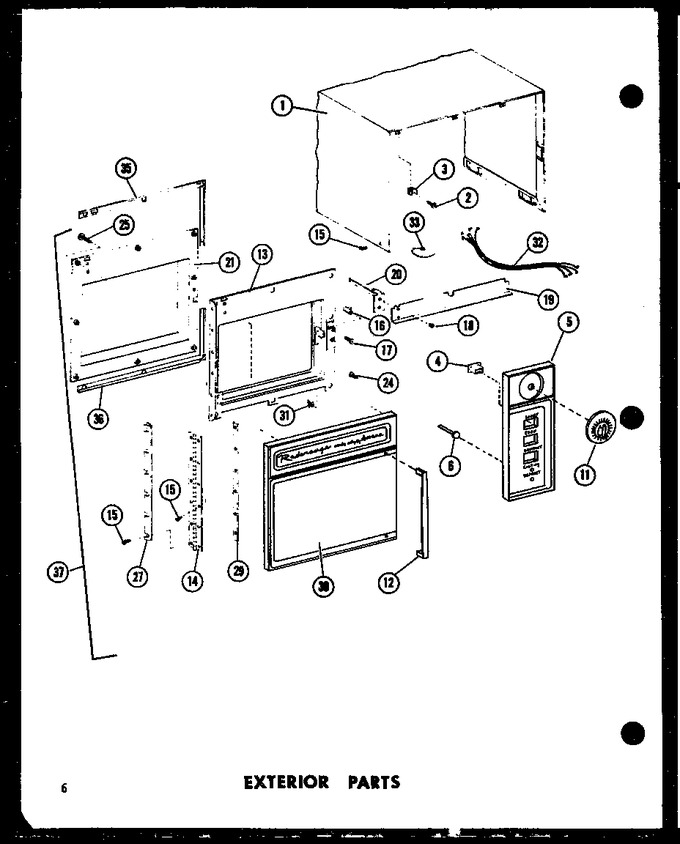

01 - Exterior Parts


02 - Interior Parts


03 - Interior Parts


04 - Page 4


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7189404		Wrapper-oc		Appelez-nous	-
2	M0213516		Screw K		Appelez-nous	-
3	A3211801		Spacer, Speed Nut		Appelez-nous	-
4	C8725901		Push Button		Appelez-nous	-
5	D7231701		Escutcheon		Appelez-nous	-
6	A3245301		Light Pilot		Appelez-nous	-
10	M0253418		Screw		Appelez-nous	-
11	C8704908		Knob		Appelez-nous	-
12	C8725601		Handle		Appelez-nous	-
13	D7188304		Door Ring Wld		Appelez-nous	-
14	B5700001		Hinge		Appelez-nous	-
15	M0230015		Screw		Appelez-nous	-
16	B5705501		Latch-door		Appelez-nous	-
17	M0228016		Screw		Appelez-nous	-
18	A4539602		Pop Rivet		Appelez-nous	-
19	C8707401		Bracket-door A		Appelez-nous	-
20	R0157117		Door Arm Assembly		Appelez-nous	-
21	D7210802		Inner Door		Appelez-nous	-
24	M0253721		Screw		Appelez-nous	-
25	M0201004		Screw		Appelez-nous	-
25	M0253717		Screw		Appelez-nous	-
27	C3695201		Support-hinge		Appelez-nous	-
29	A3223301		Tap Strip-door		Appelez-nous	-
30	D7231401		Outer Door		Appelez-nous	-
31	M0100801		Strike,door Catch		Appelez-nous	-
32	D7233601		Wiring Harness		Appelez-nous	-
33	WPW10339879		Tie K   (Replaces: M0321201)				$ 7.11
35	C8707901		Trim		Appelez-nous	-
36	C8708001		Trim		Appelez-nous	-
37	D7232101		Door Assembly		Appelez-nous	-
