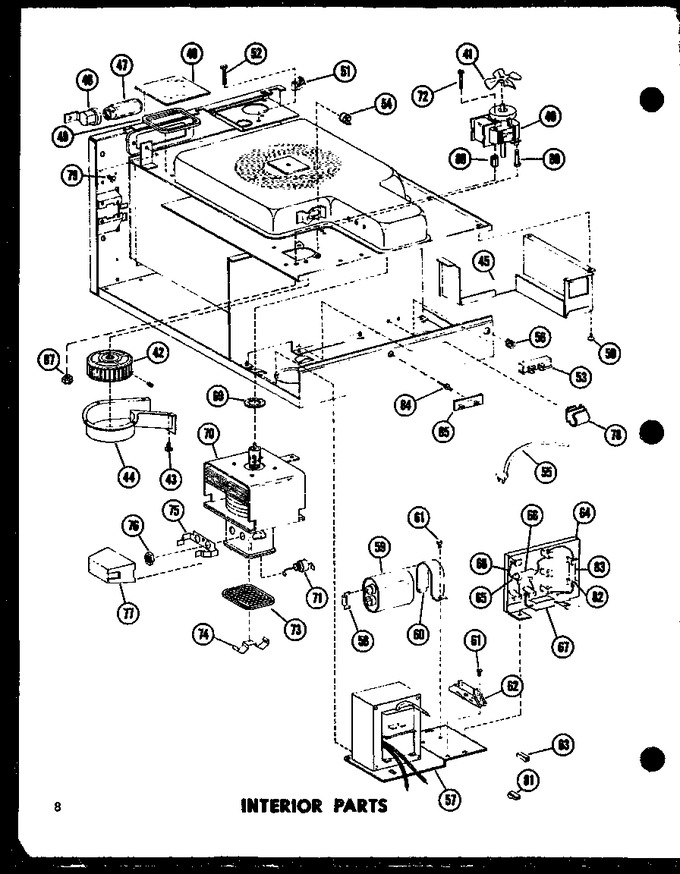

03 - Interior Parts
04 - Page 4
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 40 | C8738501 | Motor |
|
- | |||||
| 41 | B5706701 | Fan Blade |
|
- | |||||
| 42 | B5602203 | Blower Wheel |
|
- | |||||
| 43 | M0230015 | Screw |
|
- | |||||
| 44 | C8700101 | Blower Housing |
|
- | |||||
| 45 | D7191801 | Duct-outlet |
|
- | |||||
| 46 | B5691202 | Socket-oven Lamp |
|
- | |||||
| 47 | A3167501 | Bulb Q |
|
$ 28.47 | |||||
| 48 | A3213701 | Window-oven Light |
|
- | |||||
| 49 | M0275554 | Sealer Ft. A / K |
|
- | |||||
| 50 | M0130101 | Clip K |
|
- | |||||
| 51 | A3214201 | Switch-preform |
|
- | |||||
| 52 | M0227525 | Screw A-k |
|
- | |||||
| 53 | B5677202 | Terminal Block |
|
- | |||||
| 54 | B5665804 | Thermal Cutout |
|
- | |||||
| 55 | B5703502 | Power Cord |
|
- | |||||
| 56 | M0370001 | Strain Relief |
|
- | |||||
| 57 | D7192001 | Transformer |
|
- | |||||
| 58 | M0305202 | Resistor A |
|
- | |||||
| 59 | R0160012 | Capacitor |
|
- | |||||
| 60 | A3197102 | Strap-capacitor |
|
- | |||||
| 61 | M0216517 | Screw |
|
- | |||||
| 62 | B5685802 | Diode |
|
- | |||||
| 63 | M0325301 | Insulator, Term. K |
|
- | |||||
| 64 | B5730901 | Terminal Board |
|
- | |||||
| 65 | M0321701 | Sleeve |
|
- | |||||
| 66 | M0305009 | Resistor A |
|
- | |||||
| 67 | M0305204 | Resistor |
|
- | |||||
| 68 | M0308102 | Fuse |
|
- | |||||
| 69 | A3185102 | Gasket, Magnetron |
|
- | |||||
| 70 | D7192401 | Assembly, Magnetron |
|
- | |||||
| 71 | A3148801 | Capacitor K |
|
- | |||||
| 72 | M0201425 | Screw |
|
- | |||||
| 73 | B5647901 | Cover Cap Box K |
|
- | |||||
| 74 | A3145401 | Bale Strap K |
|
- | |||||
| 75 | B5655902 | Clip K |
|
- | |||||
| 76 | M0281901 | Hex Nut |
|
- | |||||
| 77 | B5656001 | Shield Hv K |
|
- | |||||
| 78 | M0118801 | Clip |
|
- | |||||
| 80 | M0202642 | Screw |
|
- | |||||
| 80 | M0272605 | Washer |
|
- | |||||
| 81 | M0325501 | Insulator, Pod K |
|
- | |||||
| 82 | M0308101 | Fuse |
|
$ 9.87 | |||||
| 83 | M0305402 | Resistor Fuse Kit |
|
- | |||||
| 84 | A4539601 | Pop Rivet |
|
- | |||||
| 84 | M0216617 | Screw |
|
- | |||||
| 85 | A3097501 | Seal, Access Panel |
|
- | |||||
| 86 | WP487939 | Nut (Replaces: M0282015) |
|
$ 6.95 | |||||
| 87 | M0282005 | Nut K |
|
$ 7.07 | |||||
| 88 | A4065511 | Spacer |
|
- | |||||
| NI | M0275121 | Tape Alum |
|
- |
