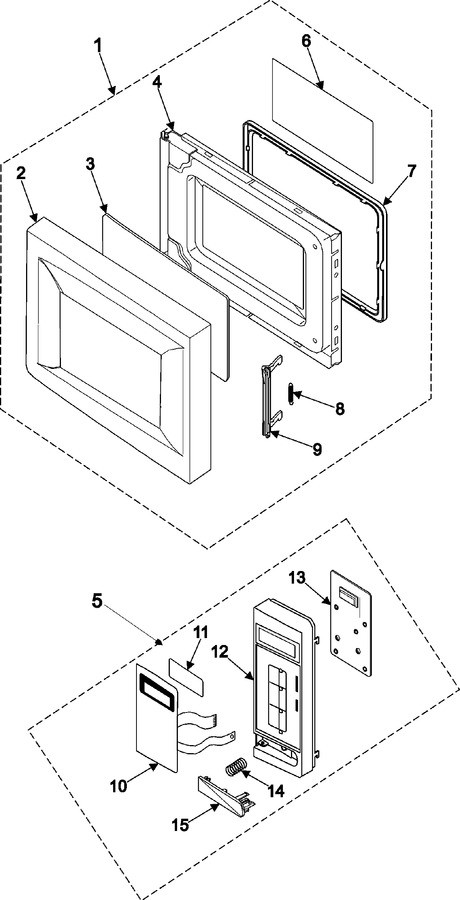

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE94-00080Y | Assy Door;mw1030bc/xaa,blk,120 |
|
- | |||||
| 2 | DE64-40317T | Door-a |
|
- | |||||
| 3 | DE67-20197D | Screen-door |
|
- | |||||
| 4 | DE94-00910A | Assy Door-e(coating) |
|
- | |||||
| 5 | 555555 | Assy Control-box;120v60hz,mr10 (Replaces: DE94-00483S) |
|
$ 151.94 | |||||
| 6 | DE01-00118A | Film-door |
|
- | |||||
| 7 | DE64-40012A | Door-c |
|
- | |||||
| 8 | DE61-70128A | Key, Spring |
|
$ 16.82 | |||||
| 9 | DE64-40006F | Key, Door |
|
$ 20.70 | |||||
| 10 | DE34-00190U | Switch Membrane |
|
- | |||||
| 11 | DE67-40179A | Window-display |
|
- | |||||
| 12 | DE72-70202H | Control-panel;abs,je1045gbc,-, |
|
- | |||||
| 13 | W10127093 | Assy Pcb Parts |
|
- | |||||
| 14 | DE61-70076A | Spring, Button |
|
$ 20.70 | |||||
| 15 | DE66-20275K | Button-push |
|
- |
