SELECT A DIAGRAM

01 - Body/cavity/elements


02 - Control Panel/door Assembly

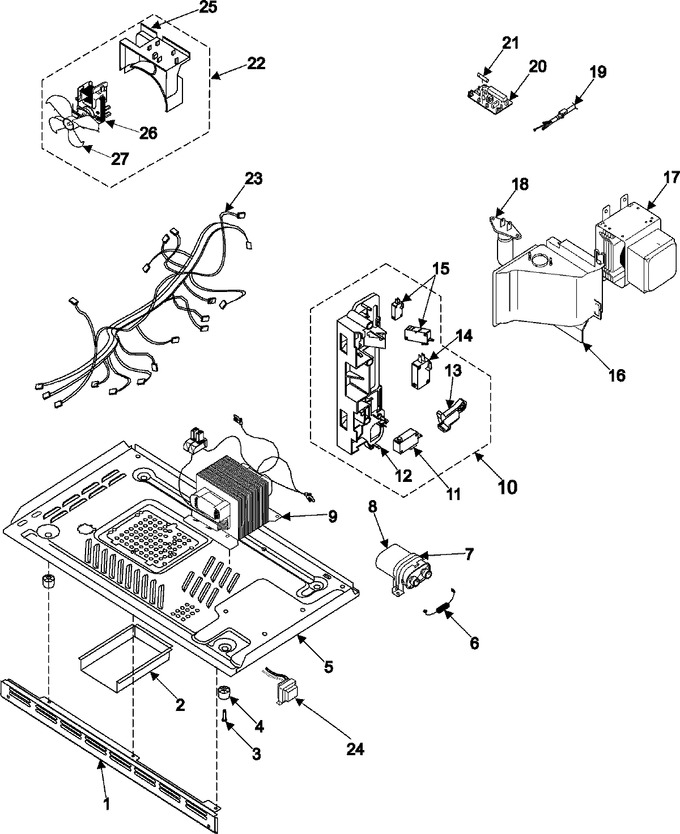

03 - Internal Control/latch Asy/base


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DE64-01103B		Trim-lower;mr1031ubc,secc,-,t0		Appelez-nous	-
2	DE70-40311A		Plate-bottom		Appelez-nous	-
3	DE60-60025A		Pin, Foot				$ 0.85
4	DE61-40065A		Foot				$ 17.58
5	DE61-00557C		Base-plate		Appelez-nous	-
6	DE91-70063D		Diode-rectifier   (Replaces: Y0402001554)			Immediately	$ 15.89
7	Y00000000		See Note Bracket, Capacitor Currently Unavailable		Appelez-nous	-
8	8206562		Capacitor   (Replaces: 2501-001016)			Immediately	$ 108.83
9	DE26-00088A		Transformer, H.v.		Appelez-nous	-
10	DE96-00115K		Assy Body Latch		Appelez-nous	-
11	DE72-00138A		Body-latch		Appelez-nous	-
12	3405-001042		Switch-micro		Appelez-nous	-
13	DE66-00088B		Lever, Switch		Appelez-nous	-
14	3405-001033		Switch-micro			Immediately	$ 17.58
15	3405-001034		Switch, Micro (125/250 Vac)			Immediately	$ 14.85
16	DE63-00208A		Cover-air		Appelez-nous	-
17	WPW10126794		Assy-mgt;om75p(31)esnl   (Replaces: W10126795)				$ 282.22
18	DE07-00006A		Lamp-incandescent		Appelez-nous	-
19	DE39-20037H		Assy Power Cord		Appelez-nous	-
20	DE96-00399B		Assy Noise Filter				$ 70.23
21	ABC20		Cartridge, Fuse   (Replaces: 3601-001198)			Immediately	$ 10.31
22	DE96-00305A		Fan Motor Assy		Appelez-nous	-
23	DE39-00191A		Wire Harness-a		Appelez-nous	-
24	DE26-00037A		Trans-l.v		Appelez-nous	-
25	DE63-00210A		Cover-blower		Appelez-nous	-
26	DE31-10185B		Motor-fan		Appelez-nous	-
27	DE31-90057A		Blade-fan				$ 17.58

    View Diagram in Separate Window       Print Part List
