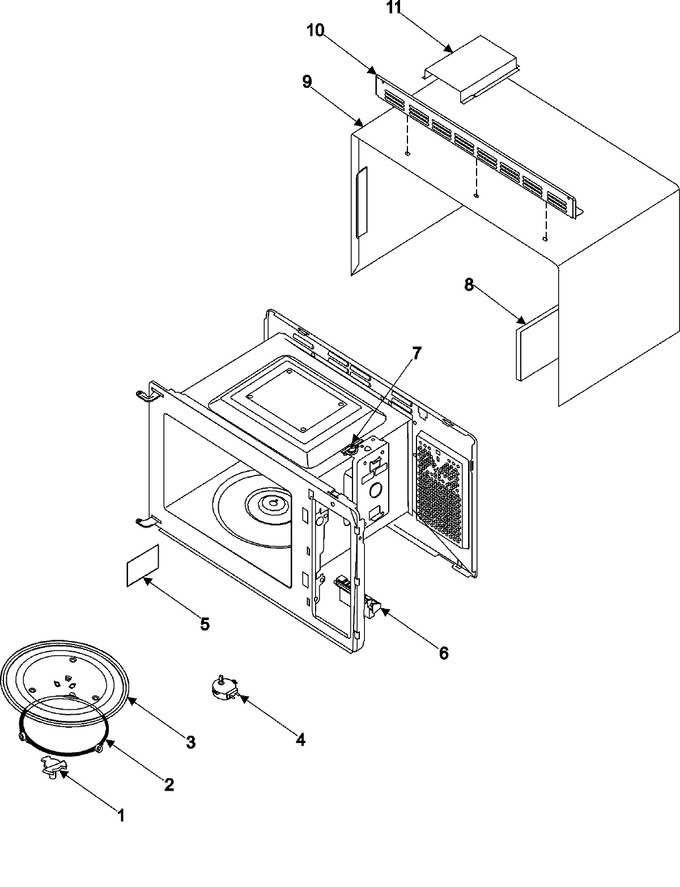

01 - Body/cavity/elements
02 - Control Panel/door Assembly
03 - Internal Control/latch Asy/base
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE67-60082A | Coupler |
|
- | |||||
| 2 | DE92-90189S | Assy-guide Roller |
|
$ 43.88 | |||||
| 3 | DE74-20002A | Tray-cooking |
|
$ 108.28 | |||||
| 4 | 555555 | Motor-drive (Replaces: DE31-10154A) |
|
$ 151.94 | |||||
| 5 | DE71-60449A | Cover-mgt |
|
- | |||||
| 6 | DE66-90113A | Lever-door |
|
$ 17.58 | |||||
| 7 | DE47-20173A | Thermostat |
|
$ 21.43 | |||||
| 8 | DE63-90035I | Cushion-rubber |
|
- | |||||
| 9 | DE70-00163L | Panel-outer |
|
- | |||||
| 10 | DE64-00565B | Trim-upper |
|
- | |||||
| 11 | DE72-50092B | Duct-air |
|
- |
