01 - Body/cavity/elements

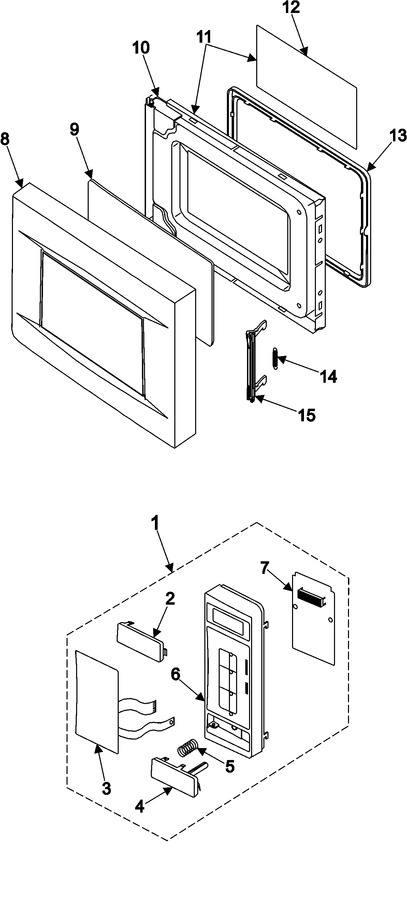

02 - Control Panel/door Assembly
03 - Internal Control/latch Asy/base
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE94-00472B | Assy Control-panel |
|
- | |||||
| 2 | DE64-00247A | Window-display |
|
- | |||||
| 3 | DE34-00112E | Switch Membrane |
|
- | |||||
| 4 | DE67-00093B | Button-push |
|
- | |||||
| 5 | DE61-70026A | Spring-button |
|
Immediately | $ 0.85 | ||||
| 6 | DE72-00146B | Control-panel |
|
- | |||||
| 7 | W10127118 | Assy Pcb Parts;mr1352wb/xaa,12 |
|
- | |||||
| 8 | DE64-00222B | Door-a |
|
- | |||||
| 9 | DE67-20198A | Screen-door |
|
- | |||||
| 10 | DE94-00019C | Assy Door-e |
|
- | |||||
| 11 | DE94-00026B | Assy Door-sub |
|
- | |||||
| 12 | DE01-00113A | Film-door |
|
- | |||||
| 13 | DE64-40010B | Door-c |
|
- | |||||
| 14 | DE61-70128A | Key, Spring |
|
$ 16.82 | |||||
| 15 | DE64-40006F | Key, Door |
|
$ 20.70 |
