SELECT A DIAGRAM
01 - Body/cavity/elements
02 - Control Panel/door Assembly

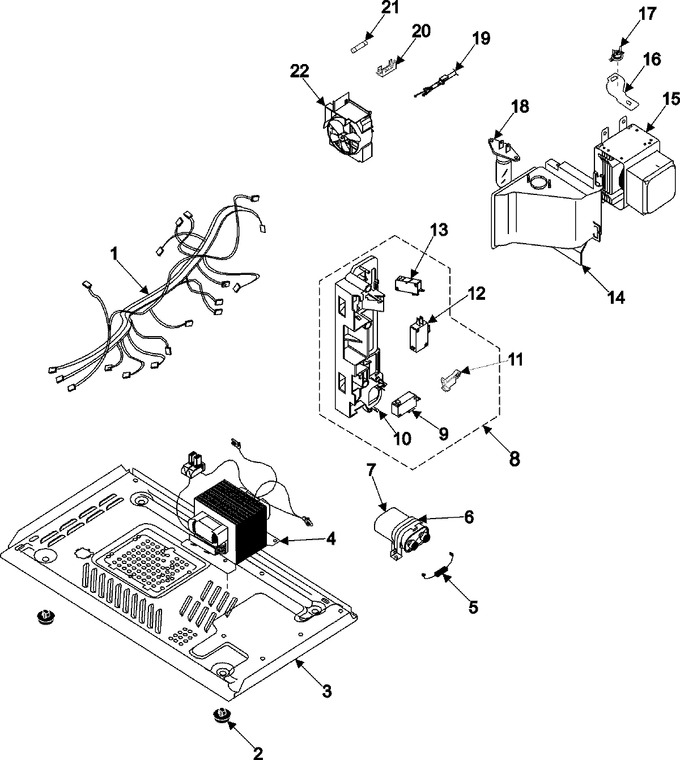

03 - Internal Control/latch Asy/base
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE39-00191A | Wire Harness-a |
|
- | |||||
| 2 | DE61-40065A | Foot |
|
$ 17.58 | |||||
| 3 | DE80-10002E | Base-plate;sgcc,t0.8,w404,l633 |
|
- | |||||
| 4 | DE26-00088A | Transformer, H.v. |
|
- | |||||
| 5 | DE91-70063D | Diode-rectifier (Replaces: Y0402001554) |
|
Immediately | $ 15.89 | ||||
| 6 | DE61-50106A | Bracket, Capacitor |
|
- | |||||
| 7 | 8206562 | Capacitor (Replaces: 2501-001016) |
|
Immediately | $ 108.83 | ||||
| 8 | DE96-00005D | Assy Body Latch |
|
$ 57.94 | |||||
| 9 | 3405-001034 | Switch, Micro (125/250 Vac) |
|
Immediately | $ 14.85 | ||||
| 10 | DE66-40001C | Latch-body |
|
- | |||||
| 11 | DE66-90114A | Lever-s/w |
|
- | |||||
| 12 | 3405-001032 | Switch-micro |
|
$ 22.17 | |||||
| 13 | 3405-001034 | Switch, Micro (125/250 Vac) |
|
Immediately | $ 14.85 | ||||
| 14 | DE71-60458A | Cover-air |
|
$ 18.00 | |||||
| 15 | WPW10126794 | Assy-magnetron:om75p(31)ess (Replaces: YOM75P31ESS) |
|
$ 282.22 | |||||
| 16 | DE61-50574A | Bracket-tco |
|
- | |||||
| 17 | DE47-20173A | Thermostat |
|
$ 21.43 | |||||
| 18 | 4713-001012 | Lamp-incandescent |
|
$ 40.81 | |||||
| 19 | DE39-20037H | Assy Power Cord |
|
- | |||||
| 20 | 3602-001002 | Fuse-holder |
|
- | |||||
| 21 | ABC20 | Cartridge, Fuse (Replaces: 3601-001198) |
|
Immediately | $ 10.31 | ||||
| 22 | DE31-00001A | Motor-fan |
|
- |
