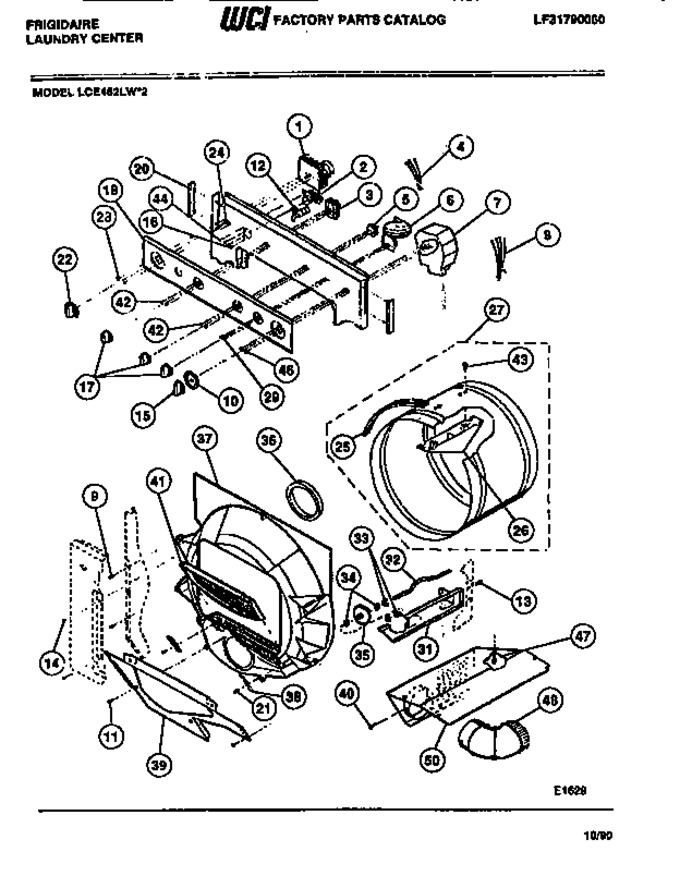

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3204993		Timer, Dryer		Appelez-nous	-
2	5303210198		Switch-push To Start		Appelez-nous	-
3	3204994		Switch, Selector		Appelez-nous	-
4	5303209777		Harness, Dryer		Appelez-nous	-
5	08008463		Switch-temperature		Appelez-nous	-
6	5303208452		Switch-pressure		Appelez-nous	-
7	3016451		Timer-washer		Appelez-nous	-
8	3204998		Harness-washer		Appelez-nous	-
9	3161244		Screw (4)		Appelez-nous	-
10	5303207104		Dial		Appelez-nous	-
11	3161244		Screw		Appelez-nous	-
12	3205000		Switch-door		Appelez-nous	-
13	08011280		Screw		Appelez-nous	-
14	08006549		Screw		Appelez-nous	-
15	5303207105		Knob-washer Timer		Appelez-nous	-
16	08001544		Screw		Appelez-nous	-
17	5303207106		Knob-rotary				$ 64.89
18	5303207107		Trimplate		Appelez-nous	-
20	3205006		End Cap (2)		Appelez-nous	-
21	3161215		Screw		Appelez-nous	-
22	5303207108		Knob And Dial Assembly				$ 74.45
24	3205008		Speednut (4)		Appelez-nous	-
25	3205009		Seal-drum (front And Rear)		Appelez-nous	-
26	3161076		Baffle-drum		Appelez-nous	-
27	3205010		Drum Assembly		Appelez-nous	-
28	08001544		Screw		Appelez-nous	-
29	08001544		Screw		Appelez-nous	-
31	3161080		Bracket, Drum Right Hand		Appelez-nous	-
32	08004076		Shaft-drum		Appelez-nous	-
33	3161255		Retaining Ring (4)				$ 4.78
34	3161256		Washer (4)		Appelez-nous	-
35	08004077		Roller And Wheel Assembly (4)		Appelez-nous	-
36	3205011		Seal-lint Housing		Appelez-nous	-
37	3205012		Housing-lint		Appelez-nous	-
38	3205013		Guide		Appelez-nous	-
39	3205014		Cover, Ling Housing		Appelez-nous	-
40	3161240		Screw		Appelez-nous	-
41	3205015		Ling Screen		Appelez-nous	-
42	3161259		Screw				$ 6.83
43	08006553		Screw		Appelez-nous	-
44	08010804		Screw		Appelez-nous	-
46	08001544		Screw		Appelez-nous	-
47	3205016		Screw		Appelez-nous	-
48	3205017		Elbow		Appelez-nous	-
50	3205018		Shield		Appelez-nous	-
*87601	5303208455		Channel-lint Housing		Appelez-nous	-
*87602	3205248		Spacer-washer Timer				$ 13.02
*87603	3004951		Resistor 2.4k Ohms-fabric Selector Switch		Appelez-nous	-
*87604	3281110		Resistor 4.4k Ohms-dryer Timer		Appelez-nous	-
31A	3161081		Bracket, Drum Left Hand		Appelez-nous	-
