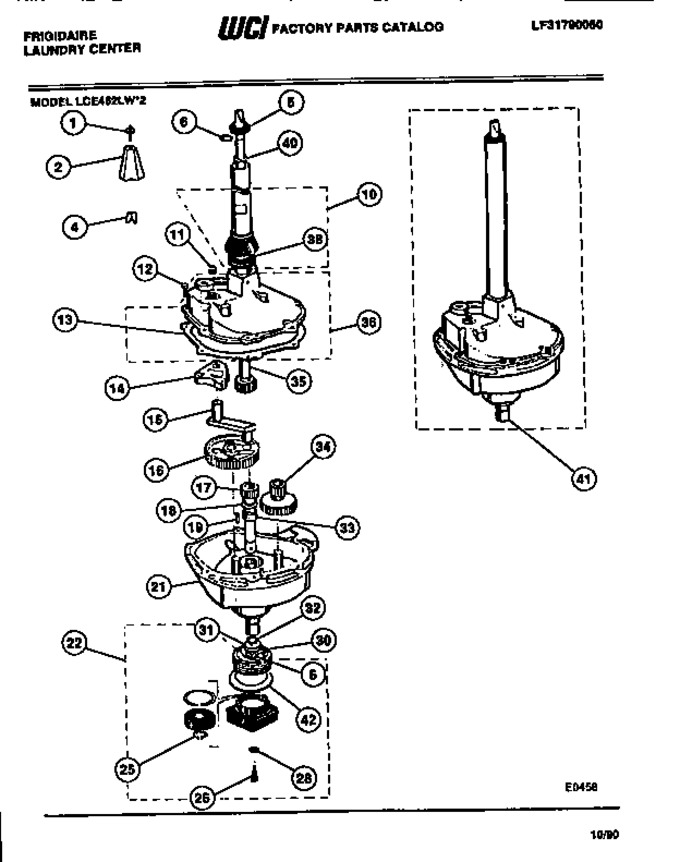

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3161221		Stud Bolt		Appelez-nous	-
2	08014904		Drive Block		Appelez-nous	-
4	3161222		Shim		Appelez-nous	-
5	08011273		Seal-upper Lip		Appelez-nous	-
6	3161223		Retaining Ring (2)		Appelez-nous	-
10	08950197		Water Seal Kit		Appelez-nous	-
11	3161224		Pipe Plug		Appelez-nous	-
12	08002804		Screw		Appelez-nous	-
13	08015778		Gasket		Appelez-nous	-
14	08011268		Gear-sector		Appelez-nous	-
15	3161169		Rod-connecting		Appelez-nous	-
16	08015496		Gear-crank		Appelez-nous	-
17	08014905		Shaft Assembly-lower		Appelez-nous	-
18	3161226		Thrust Washer		Appelez-nous	-
19	3161227		Dowel Pin		Appelez-nous	-
21	F140586000		Housing, Lower		Appelez-nous	-
22	08950058		Bearing Housing/lgs Spring Package		Appelez-nous	-
25	08015536		Retaining Ring		Appelez-nous	-
26	08027582		Screw		Appelez-nous	-
28	5303207426		Spacer-rubber (2)				$ 9.21
30	3351064		Spacer Washer		Appelez-nous	-
31	3161226		Thrust Washer		Appelez-nous	-
32	3161173		Seal-lower Lip		Appelez-nous	-
33	3161174		Small L.g.s. Spring		Appelez-nous	-
34	3161175		Gear-idler		Appelez-nous	-
35	08014910		Shaft Assembly-agitator		Appelez-nous	-
36	F140588000		Housing, Upper		Appelez-nous	-
38	3161231		Slinger		Appelez-nous	-
40	3161232		Thrust Washer		Appelez-nous	-
41	5303208459		Transmission-complete		Appelez-nous	-
42	08057430		Washer		Appelez-nous	-
*87610	5303208460		Oil-transmission (1 Qt.)		Appelez-nous	-
*87611	3161182		Sleeve-clutch Coil		Appelez-nous	-
