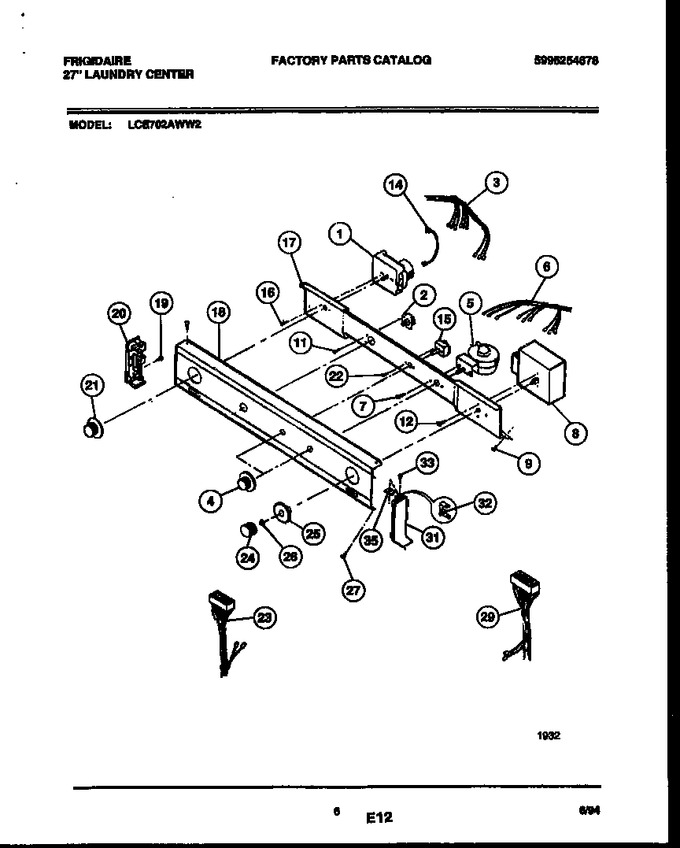

04 - Console And Control Parts


05 - Cabinet Parts


06 - Tub Detail


07 - Transmission Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303269741		Timer-dryer		Appelez-nous	-
2	5303211158		Switch-start-white		Appelez-nous	-
3	5303270952		Harness-dryer Control		Appelez-nous	-
4	131873401		Knob-rotary-white   (Replaces: 131168101)				$ 49.73
5	5303209894		Switch-water Level		Appelez-nous	-
6	131081900		Harness-washer Control		Appelez-nous	-
7	131168200		Screw			Immediately	$ 14.18
8	5303271775		Timer-washer				$ 472.50
9	131168200		Screw			Immediately	$ 14.18
11	218359202		Screw   (Replaces: 5303283289)				$ 10.63
12	218359202		Screw   (Replaces: 5303283289)				$ 10.63
14	3205243		Resistor-power		Appelez-nous	-
15	5308008463		Temperature Switch				$ 84.39
16	218359202		Screw (2)   (Replaces: 5303283289)				$ 10.63
17	131112102		Bracket-control-panel		Appelez-nous	-
18	131224700		Panel-control-white		Appelez-nous	-
19	131168200		Screw (4)			Immediately	$ 14.18
20	5303211162		Endcap-lh-white		Appelez-nous	-
21	131873304		Knob-dryer-white   (Replaces: 131167801)			Immediately	$ 59.54
22	3161259		Screw				$ 6.83
23	131236700		Harness-dryer		Appelez-nous	-
24	131167601		Knob-washer-white				$ 54.95
25	131167701		Dial-white				$ 61.81
26	3205248		Space-timer Shaft				$ 13.02
27	3205253		Screw		Appelez-nous	-
29	131013500		Harness-washer		Appelez-nous	-
31	5303211167		End Cap-rh-white		Appelez-nous	-
32	3204357		Clip-grounding				$ 60.11
33	08010789		Screw (4)		Appelez-nous	-
35	5308014350		Clip (4)		Appelez-nous	-
*10012	5303210651		Pad-spacer (2)		Appelez-nous	-
*10012	3161259		Screw-switch				$ 6.83
*10012	5303270950		Switch-temp Dryer		Appelez-nous	-
