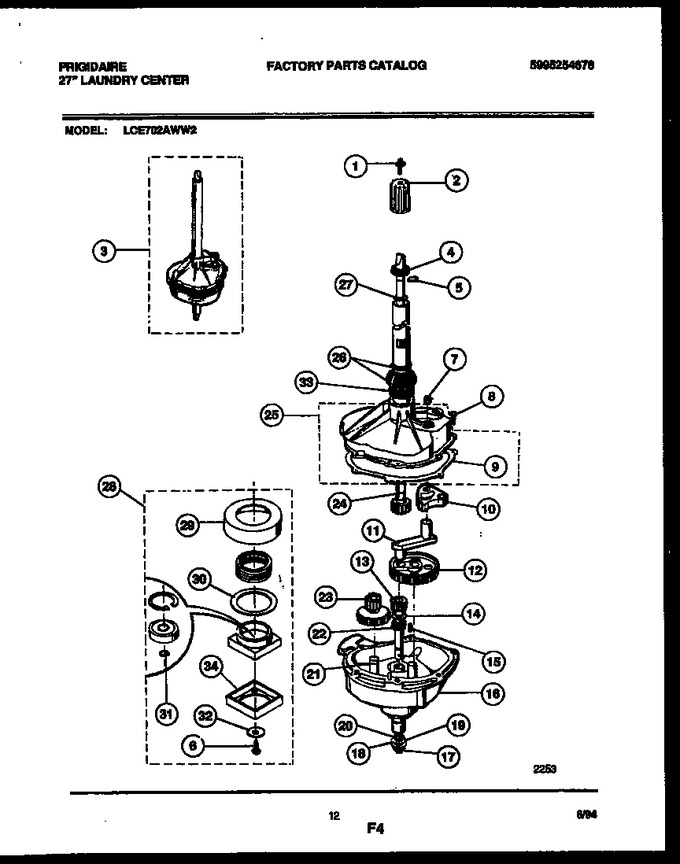

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3204461		Cap Stud				$ 18.17
2	3204462		Drive Hub		Appelez-nous	-
3	134735700		Complete Transmission   (Replaces: 5308057580)				$ 820.03
4	5303161307		Upper Lip Seal			Immediately	$ 21.27
5	5303161223		Retaining Ring				$ 10.24
6	5308027582		Screw (2)		Appelez-nous	-
7	5303161224		Pipe Plug		Appelez-nous	-
8	08002804		Screw (6)		Appelez-nous	-
9	5308015778		Gasket				$ 33.18
10	5308011268		Sector Gear		Appelez-nous	-
11	5303161169		Connecting Rod		Appelez-nous	-
12	5308015496		Crank Gear		Appelez-nous	-
13	5308014905		Lower Shaft Assembly		Appelez-nous	-
14	5303161226		Thrust Washer		Appelez-nous	-
15	5303161227		Dowel Pin		Appelez-nous	-
16	5303912535		Lower Housing Assembly		Appelez-nous	-
17	5303161223		Retaining Ring				$ 10.24
18	5308002475		Spacer Washer		Appelez-nous	-
19	5303161226		Thrust Washer		Appelez-nous	-
20	5303161173		Lower Lip Seal				$ 9.36
21	3005242		Transmission Oil (1 Qt)		Appelez-nous	-
22	5303161174		Small Lgs Spring				$ 22.10
23	5303161175		Idler Gear		Appelez-nous	-
24	5308015507		Agitator-shaft Assembly		Appelez-nous	-
25	5303205527		Upper Housing Assembly		Appelez-nous	-
26	5303279394		Tub Seal Assembly				$ 85.72
27	5303161232		Thrust Washer		Appelez-nous	-
28	5308950058		Bearing-housing Pkg		Appelez-nous	-
29	5303161182		Sleeve-clutch Coil		Appelez-nous	-
30	5308057430		Washer-clutch Coil		Appelez-nous	-
31	5308015536		Retaining Ring		Appelez-nous	-
32	5303207426		Rubber Spacer (2)				$ 9.21
33	5303272073		Slinger				$ 29.82
34	5377009100		Cushion		Appelez-nous	-
*10013	5303161222		Shim-drive Hub				$ 7.12
