01 - Body/cavity/elements
02 - Control Panel/door Assembly

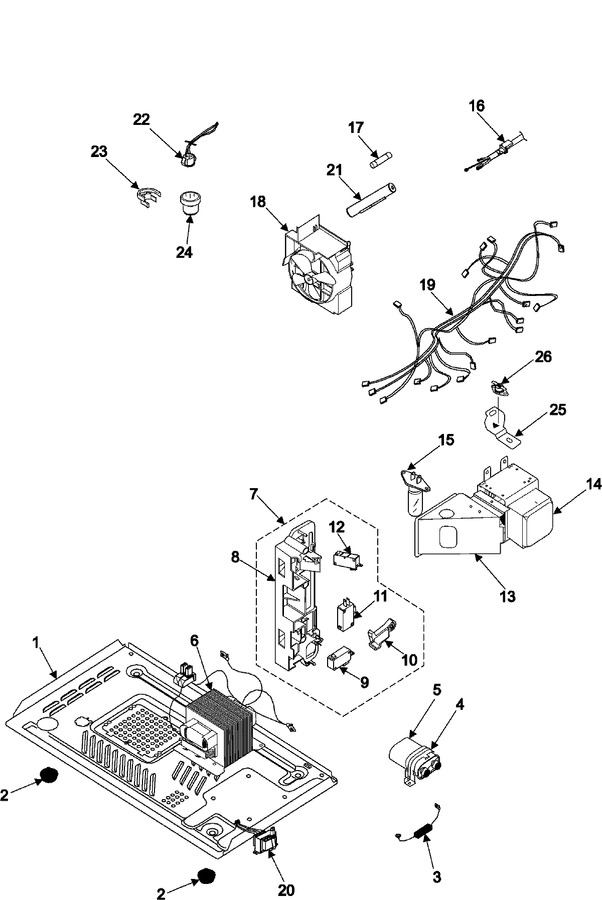

03 - Internal Control/latch Assy/base
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE80-10002F | Base-plate |
|
- | |||||
| 2 | DE61-40066A | Foot |
|
$ 17.58 | |||||
| 3 | 555555 | Diode-h.v (Replaces: DE59-40001A) |
|
$ 151.94 | |||||
| 4 | DE61-50106A | Bracket, Capacitor |
|
- | |||||
| 5 | 2501-001015 | Capacitor |
|
- | |||||
| 6 | DE26-00021A | Trans-h.v |
|
$ 137.15 | |||||
| 7 | DE96-00005F | Assy Body Latch |
|
- | |||||
| 8 | DE66-40001C | Latch-body |
|
- | |||||
| 9 | 3405-001055 | Switch-micro |
|
$ 17.58 | |||||
| 10 | DE66-90114A | Lever-s/w |
|
- | |||||
| 11 | 3405-001033 | Switch-micro |
|
Immediately | $ 17.58 | ||||
| 12 | 3405-001034 | Switch, Micro (125/250 Vac) |
|
Immediately | $ 14.85 | ||||
| 13 | DE71-60458A | Cover-air |
|
$ 18.00 | |||||
| 14 | DE03-00010A | Magnetron |
|
- | |||||
| 15 | WP8183592 | Lamp-incandescent (Replaces: 4713-001102) |
|
$ 41.09 | |||||
| 16 | DE39-00040E | Assy Power Cord |
|
- | |||||
| 17 | ABC20 | Cartridge, Fuse (Replaces: 3601-001198) |
|
Immediately | $ 10.31 | ||||
| 18 | DE31-00001G | Assy-motor Fan |
|
- | |||||
| 19 | DE39-00256B | Wire Harness-a |
|
- | |||||
| 20 | DE26-20151A | Trans-l.v |
|
- | |||||
| 21 | DE47-40025A | Holder, Fuse |
|
- | |||||
| 22 | DE39-00072A | Wire Harness-s |
|
- | |||||
| 23 | DE61-90111A | Holder-sensor |
|
$ 0.88 | |||||
| 24 | DE32-60013A | Sensor-gas |
|
$ 94.70 | |||||
| 25 | DE61-50574A | Bracket-tco |
|
- | |||||
| 26 | DE47-20173A | Thermostat |
|
$ 21.43 |
