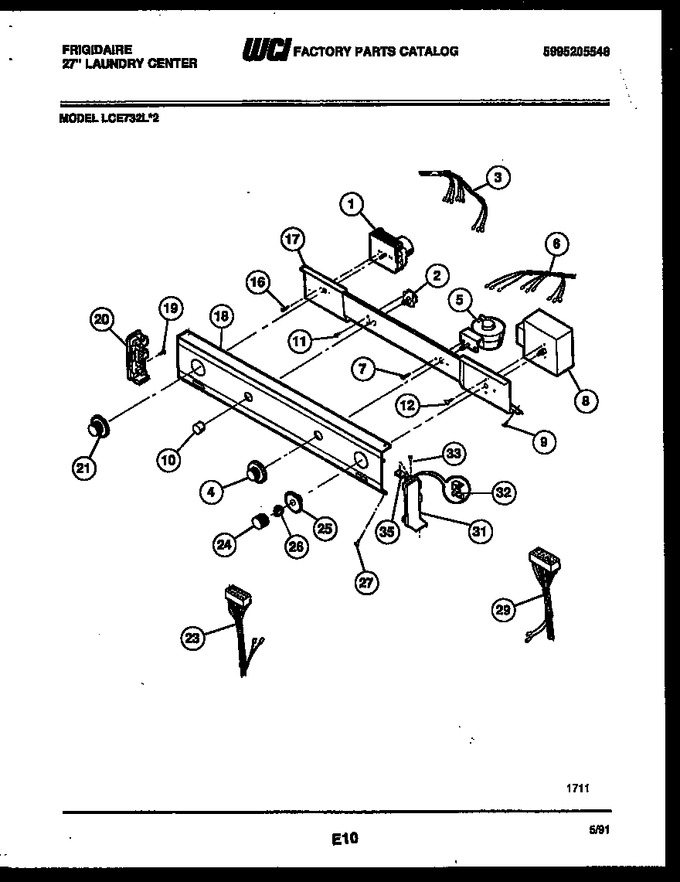

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303269847 | Dryer Timer |
|
- | |||||
| 2 | 3205632 | Start Switch |
|
- | |||||
| 3 | 5303269857 | Dryer Control Harness |
|
- | |||||
| 4 | 3205634 | Rotary Knob |
|
$ 38.85 | |||||
| 5 | 5303209894 | Switch-water Level |
|
- | |||||
| 6 | 3205636 | Washer Control Harness |
|
- | |||||
| 7 | 3161233 | Screw (2) |
|
- | |||||
| 8 | 3205637 | Washer Timer |
|
- | |||||
| 9 | 3161239 | Screw-control Pnl To Side Panels (2) |
|
- | |||||
| 10 | 3205638 | Push Button |
|
- | |||||
| 11 | F135022000 | Screw (2) |
|
- | |||||
| 12 | 3161188 | Screw (2) |
|
- | |||||
| 16 | 3161188 | Screw (2) |
|
- | |||||
| 17 | 3205639 | Bracket-control Panel |
|
- | |||||
| 18 | 3205640 | Control Panel |
|
- | |||||
| 19 | 3161233 | Screw (4) |
|
- | |||||
| 20 | 5303209671 | End Cap-lh |
|
- | |||||
| 21 | 5303269742 | Dryer Knob Assy |
|
- | |||||
| 23 | 5303269858 | Dryer Harness |
|
- | |||||
| 24 | 3205643 | Knob-washer |
|
- | |||||
| 25 | 3205644 | Indicator-washer Time |
|
$ 43.42 | |||||
| 26 | 3205248 | Spacer-washer Timer Shaft |
|
$ 13.02 | |||||
| 27 | 3205253 | Screw-end Cap To Side Panel |
|
- | |||||
| 29 | 3205645 | Washer Harness |
|
- | |||||
| 31 | 5303210650 | End Cap-rh |
|
- | |||||
| 32 | 3204357 | Grounding Clip |
|
$ 60.11 | |||||
| 33 | 08010789 | Screw (4) |
|
- | |||||
| 35 | 08014350 | Clip (4) |
|
- | |||||
| *45264 | 5303210651 | Spacer Pad (2) |
|
- |
