02 - Cabinet And Component Parts
03 - Motor, Blower And Body Assembly
04 - Console And Control Parts
05 - Cabinet Parts
06 - Tub Detail

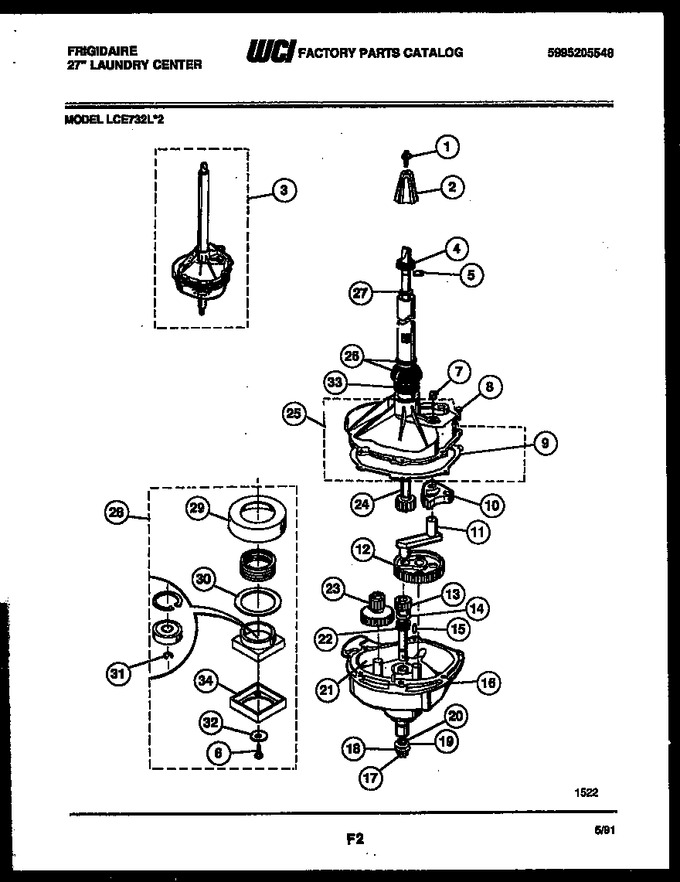

07 - Transmission Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3204461 | Cap Stud |
|
$ 18.17 | |||||
| 2 | 3204462 | Drive Hub |
|
- | |||||
| 3 | 3205526 | Complete Transmission |
|
- | |||||
| 4 | 3161307 | Upper Lip Seal |
|
- | |||||
| 5 | 3161223 | Retaining Ring |
|
- | |||||
| 6 | 08027582 | Screw (2) |
|
- | |||||
| 7 | 3161224 | Pipe Plug |
|
- | |||||
| 8 | 08002804 | Screw (6) |
|
- | |||||
| 9 | 08015778 | Gasket |
|
- | |||||
| 10 | 08011268 | Sector Gear |
|
- | |||||
| 11 | 3161169 | Connecting Rod |
|
- | |||||
| 12 | 08015496 | Crank Gear |
|
- | |||||
| 13 | 08014905 | Lower Shaft Assy |
|
- | |||||
| 14 | 3161226 | Thrust Washer |
|
- | |||||
| 15 | 3161227 | Dowel Pin |
|
- | |||||
| 16 | F140586-000 | Lower Housing Assy |
|
- | |||||
| 17 | 3161223 | Retainer Ring |
|
- | |||||
| 18 | 08002475 | Spacer Washer |
|
- | |||||
| 19 | 3161226 | Thrust Washer |
|
- | |||||
| 20 | 3161173 | Lower Lip Seal |
|
- | |||||
| 21 | 3005242 | Transmission Oil (1 Qt) |
|
- | |||||
| 22 | 3161174 | Small L.g.s. Spring |
|
- | |||||
| 23 | 3161175 | Idler Gear |
|
- | |||||
| 24 | 3204463 | Agitator Shaft Assy |
|
- | |||||
| 25 | 3205527 | Upper Housing Assy |
|
- | |||||
| 26 | 08950197 | Tub Seal Assembly |
|
- | |||||
| 27 | 3161232 | Thrust Washer |
|
- | |||||
| 28 | 08950058 | Bearing Housing Pkg |
|
- | |||||
| 29 | 3161182 | Sleeve-clutch Coil |
|
- | |||||
| 30 | 08057430 | Washer-clutch Coil |
|
- | |||||
| 31 | 08015536 | Retaining Ring |
|
- | |||||
| 32 | 5303207426 | Spacer (2) |
|
$ 9.21 | |||||
| 33 | 3161231 | Slinger |
|
- | |||||
| 34 | 5377009100 | Cushion |
|
- | |||||
| *45274 | 5303161222 | Shim-drive Hub |
|
$ 7.12 |
