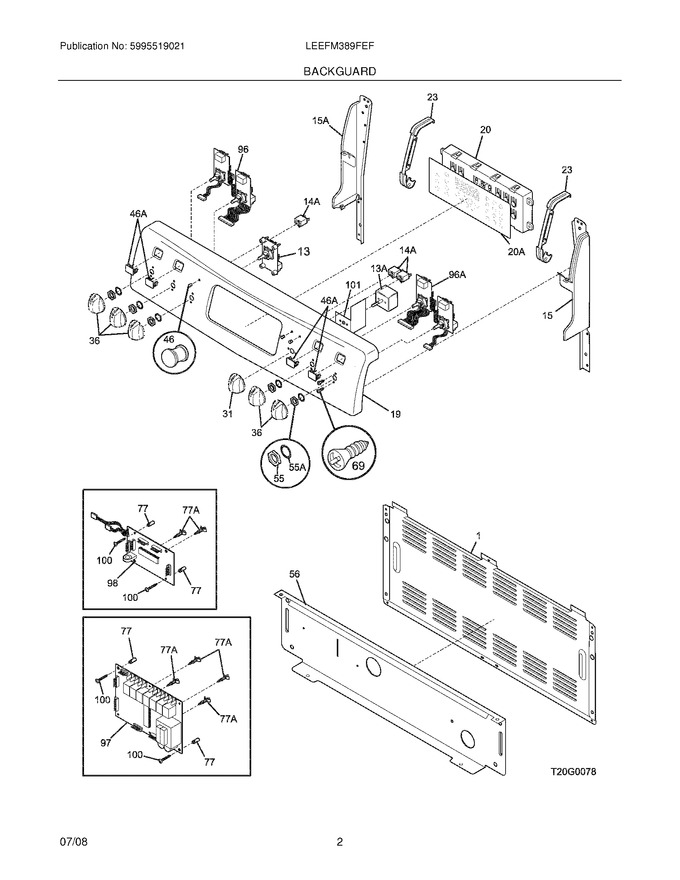

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Backguard
05 - Body
07 - Top/drawer
09 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316281802 | Shield,backguard ,rear Wall (Replaces: 316416100) |
|
$ 57.64 | |||||
| 13 | 316414400 | Control,bake ,mini Oven |
|
$ 282.50 | |||||
| 15 | 316411405 | Support,backguard ,black ,rh |
|
$ 83.95 | |||||
| 19 | 316424197 | Panel,control ,silver Mist |
|
- | |||||
| 23 | 316419200 | Bracket,clock ,(2) |
|
- | |||||
| 31 | 316454600 | Knob,control ,silver Mist |
|
- | |||||
| 36 | 316454601 | Knob,control ,silver Mist ,(5) |
|
- | |||||
| 46 | 316557300 | Lens-light/lamp,indicator ,clear (Replaces: 316437800) |
|
Immediately | $ 16.77 | ||||
| 55 | 316247700 | Nut,mounting ,(2) |
|
$ 18.20 | |||||
| 56 | 316234045 | Shield,backguard ,black ,inner (Replaces: 316234013) |
|
$ 66.74 | |||||
| 69 | 5303288565 | Screw,truss Sqdr `8-32 X 3/16 ,switch Mtg |
|
$ 3.12 | |||||
| 77 | 316247900 | Spacer,power Board |
|
$ 44.65 | |||||
| 96 | 316445612 | Board,display ,lh Controls ,2 ,potentiometers |
|
- | |||||
| 98 | 316442012 | Board,rotary ,uib |
|
$ 256.99 | |||||
| 100 | 5303289910 | Screw,8a ,1`` ,(7) ,power Board Mtg |
|
$ 5.67 | |||||
| 101 | 316247400 | Insulator,switch |
|
$ 30.70 | |||||
| 14A | 316022500 | Light/lamp, Indicator, 125 V |
|
Immediately | $ 53.57 | ||||
| 15A | 316411404 | Support,backguard ,black ,lh |
|
$ 83.95 | |||||
| 20A | 316419703 | Overlay,clock ,silver Mist ,w/mini Oven |
|
- | |||||
| 46A | 316448000 | Lens,led Display |
|
$ 29.51 | |||||
| 55A | 316247800 | Washer,lock ,mtg |
|
$ 18.20 | |||||
| 77A | 316114100 | Spacer,(4) |
|
$ 60.96 | |||||
| 96A | 316445613 | Board,display ,rh Controls ,2 ,potentiometers |
|
- | |||||
| F13A | 5304508926 | Switch,infinite ,warmer (Replaces: 316095503) |
|
Immediately | $ 84.18 | ||||
| F20 | 316462800 | Controller,electronic ,es530 |
|
$ 360.50 | |||||
| F97 | 316442112 | Board,power ,relay |
|
Immediately | $ 328.64 | ||||
| FNI | 316466603 | Harness,wiring ,main Control |
|
$ 127.26 | |||||
| FNI | 316466605 | Harness,wiring ,power Board ,to Uib |
|
$ 50.35 | |||||
| NI | 316021109 | Screw,hex Head Cup Pt ,8-18 X 0.375 ,black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw`8-18 X 0.5 ,chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw,8-18 X 0.5 ,black (Replaces: 316021110) |
|
Immediately | $ 27.50 |
