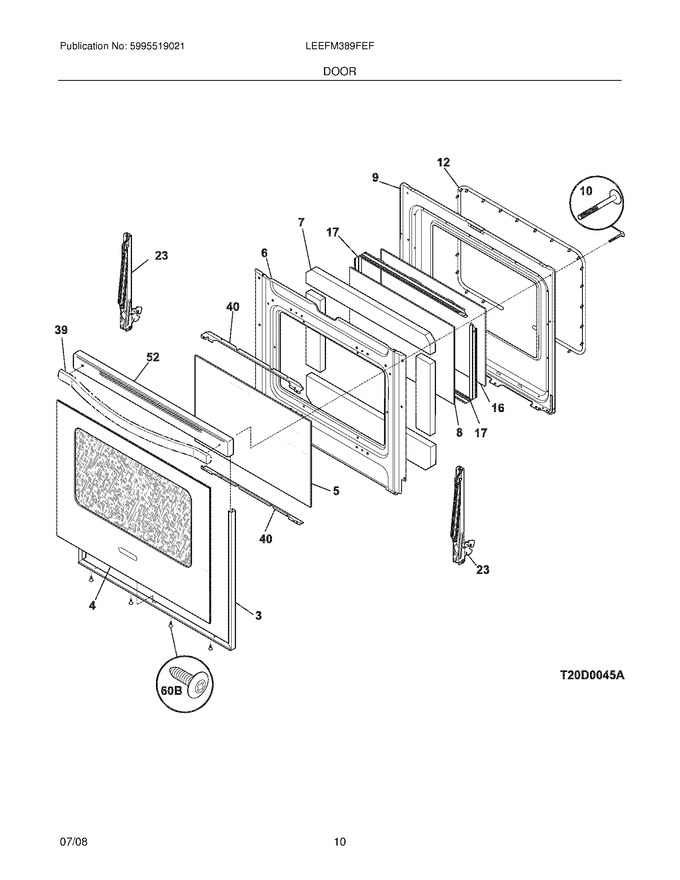

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935377		Trim Kit-door,3 Sided ,black ,w/tape   (Replaces: 5303935245)			Immediately	$ 58.12
4	316453006		Glass Assembly,oven Door ,w/tape ,outer		Appelez-nous	-
5	316446401		Glass,oven Door ,airwash   (Replaces: 316446400)			Immediately	$ 125.13
6	316406328		Shield,wool   (Replaces: 316406306)				$ 87.21
7	316405600		Insulation,oven Door				$ 76.55
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117500)				$ 116.95
9	316423701		Liner,oven Door				$ 143.50
10	316433300		Screw,10-14 X 2.125`` ,handle Mtg.			Immediately	$ 27.50
12	316405000		Seal,oven Door			Immediately	$ 179.17
16	316117501		Glass,oven Door ,inner				$ 148.16
17	5304504811		Spacer,door Glass ,(2)   (Replaces: 316402403)			Immediately	$ 25.02
23	316456308		Hinge,oven Door ,gray ,(2)				$ 32.58
39	316454502		Handle,silver Mist		Appelez-nous	-
40	316446301		Bracket,glass ,airwash ,(2)				$ 59.96
52	316468404		Cap,door Trim ,silver Mist		Appelez-nous	-
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	316433603		Label,anti-tip				$ 3.55
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46
