SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer
04 - Oven/base
05 - Top Assembly
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:

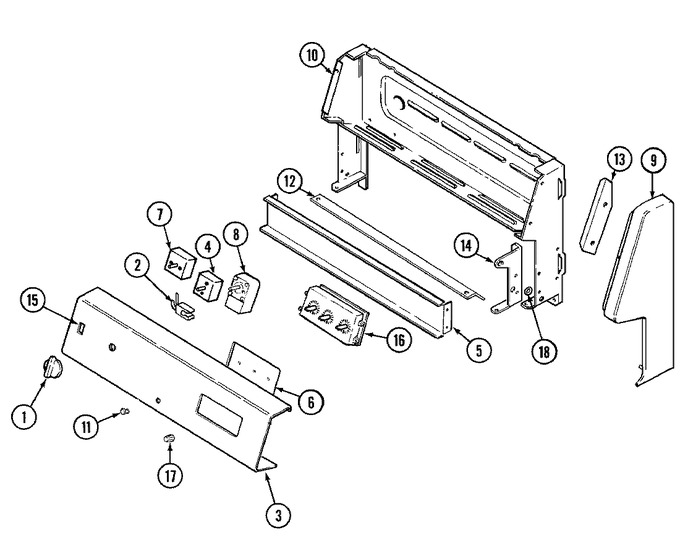

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7731P082-60 | Knob, Therm/burner (blk) | 39 |
|
- | ||||
| 2 | W10852510 | Light, Indicator (Replaces: 7407P102-60) | 39 |
|
$ 106.11 | ||||
| 3 | 74002564 | Panel, Control (blk) | 39 |
|
- | ||||
| 3 | WPY706189 | Screw (8abx3/8-blk) (Replaces: 7101P347-60) | 39 |
|
Immediately | $ 6.47 | |||
| 4 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 39 |
|
Immediately | $ 6.26 | |||
| 4 | 7403P342-60 | Switch, Selector | 39 |
|
- | ||||
| 5 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 39 |
|
Immediately | $ 12.62 | |||
| 5 | 3802F088-51 | Brace, Control Panel | 39 |
|
- | ||||
| 6 | 7902P109-60 | Glass, Clock | 39 |
|
- | ||||
| 7 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 39 |
|
Immediately | $ 57.78 | |||
| 7 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 39 |
|
Immediately | $ 35.10 | |||
| 7 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 39 |
|
Immediately | $ 6.26 | |||
| 8 | 7101P280-60 | Screw W/washer (blk) | 39 |
|
- | ||||
| 8 | 7404P100-60 | Thermostat | 39 |
|
- | ||||
| 9 | 7726P051-60 | End Cap (rt-blk) | 39 |
|
- | ||||
| 9 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 39 |
|
Immediately | $ 12.62 | |||
| 9 | 7726P052-60 | End Cap (lt-blk) | 39 |
|
- | ||||
| 10 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 39 |
|
Immediately | $ 12.62 | |||
| 10 | 74002162 | Housing, Control Panel | 39 |
|
- | ||||
| 11 | W11690131 | Lens, Indicator Light (Replaces: 7730P012-60) | 39 |
|
$ 6.73 | ||||
| 12 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 39 |
|
Immediately | $ 12.62 | |||
| 12 | 3604F201-80 | Shield, Sight | 39 |
|
- | ||||
| 13 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 39 |
|
Immediately | $ 12.62 | |||
| 13 | 3807F450-45 | Support, Control Pnl (lt) | 39 |
|
- | ||||
| 13 | 3807F449-45 | Support, Control Pnl (rt) | 39 |
|
- | ||||
| 14 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 39 |
|
Immediately | $ 12.62 | |||
| 14 | 8114P348-60 | Cover, Hinge Support | 39 |
|
- | ||||
| 14 | 3418D097-60 | Hinge, Main Top (lt) | 39 |
|
- | ||||
| 14 | 3418D098-60 | Hinge, Main Top (rt) | 39 |
|
- | ||||
| 15 | 7718P009-60 | Plug, Hole | 39 |
|
- | ||||
| 16 | 74001560 | Clock (blk) | 39 |
|
- | ||||
| 16 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 39 |
|
Immediately | $ 12.62 | |||
| 17 | 7711P466-60 | Knob, Clock | 39 |
|
$ 14.72 | ||||
| 18 | WP3195558 | Nut, Speed (Replaces: 7103P044-60) | 39 |
|
$ 7.68 | ||||
| 19 | 74001013 | Harness, Control/top | 39 |
|
- | ||||
| 19 | 74002565 | Harness, Control Panel | 39 |
|
- | ||||
| 20 | 8113P038-60 | Insert, Instruction Sheet | 39 |
|
- | ||||
| 20 | 74002251 | Manual, Use & Care | 39 |
|
- | ||||
| 21 | 16000329 | Guide, Quick Ref. - Magic Chef | 39 |
|
- |
