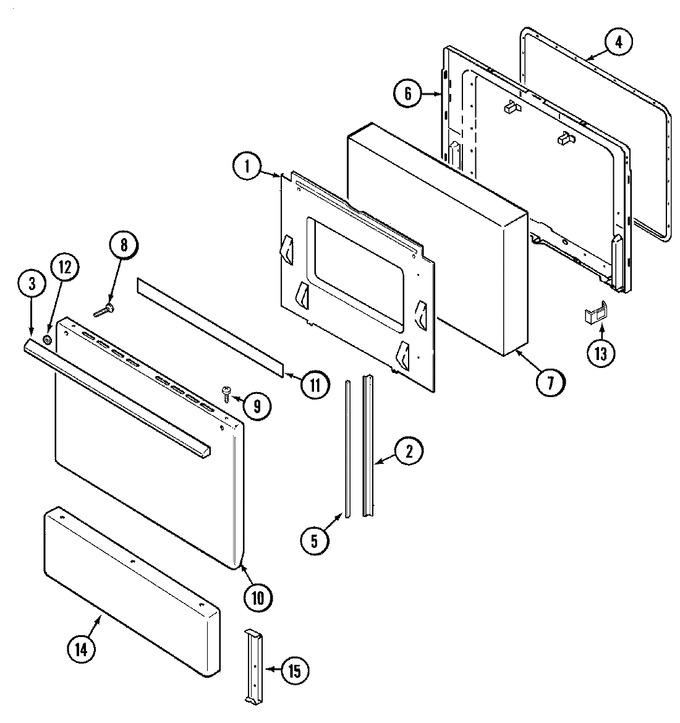

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	39		Immediately	$ 12.62
1	3601F218-47		Baffle, Door	39	Appelez-nous	-
2	3818F052-80		Channel, Air	39	Appelez-nous	-
2	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	39		Immediately	$ 12.62
3	WP2411F013-70		Handle, Drawer (blk)   (Replaces: 2411F003-70)	39			$ 186.01
4	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	39		Immediately	$ 77.61
5	7208P002-60		Seal	39	Appelez-nous	-
6	2402W210-19		Lining, Door	39	Appelez-nous	-
7	4804F051-60		Insulation, Door	39	Appelez-nous	-
8	WP3387230		Screw, Clamp   (Replaces: 7101P080-60)	39		Immediately	$ 7.69
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	39		Immediately	$ 12.62
10	74002092		Panel, Door (blk)	39	Appelez-nous	-
11	8270P090-60		Tape, Foil (3`` Wide)	39	Appelez-nous	-
12	8010P084-60		Spacer, Handle (blk)	39	Appelez-nous	-
13	7112P034-60		Clip, Door	39	Appelez-nous	-
14	2416F042-71		Panel, Access (wht)	39	Appelez-nous	-
15	3801F257-51		Bracket, Panel	39	Appelez-nous	-
