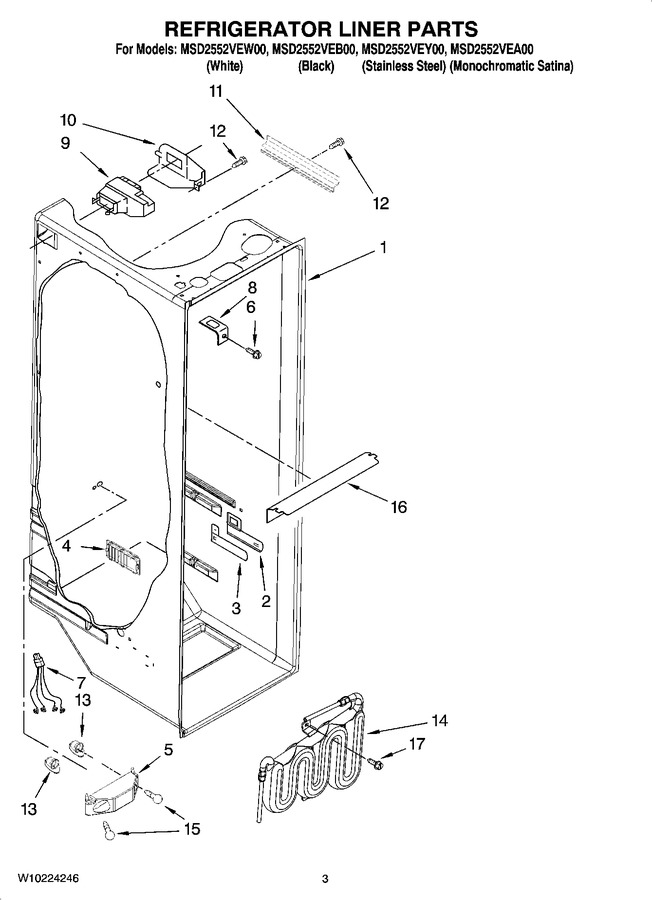

02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	W10175967		Escutcheon, Meat Pan Control				$ 77.20
3	2182757		Slide Meat Pan Control				$ 75.15
4	2257741		Louver		Appelez-nous	-
5	2256035		Bracket, Dual Crisper Light				$ 62.54
6	WP488488		Screw (2)   (Replaces: 489290)				$ 6.91
7	2311637		Wire Assembly, Crisper Light				$ 126.21
8	WP2256085		Bracket Retainer   (Replaces: 2256085)				$ 30.94
9	WPW10151374		Air Diffuser Assembly   (Replaces: 2209753)			Immediately	$ 89.80
10	2152019		Air Diffuser Cover				$ 77.43
11	2150331		Cover, Conduit				$ 21.96
12	W10759522		Screw   (Replaces: 486298)				$ 6.98
13	4387478		Socket   (Replaces: 2162085)			Immediately	$ 99.14
14	WPW10276792		Reservoir   (Replaces: W10204356)			Immediately	$ 123.81
15	W11679940		Light Bulb   (Replaces: 2311792)			Immediately	$ 10.17
16	2209769		Light Lens		Appelez-nous	-
17	488280		Screw (2)		Appelez-nous	-
