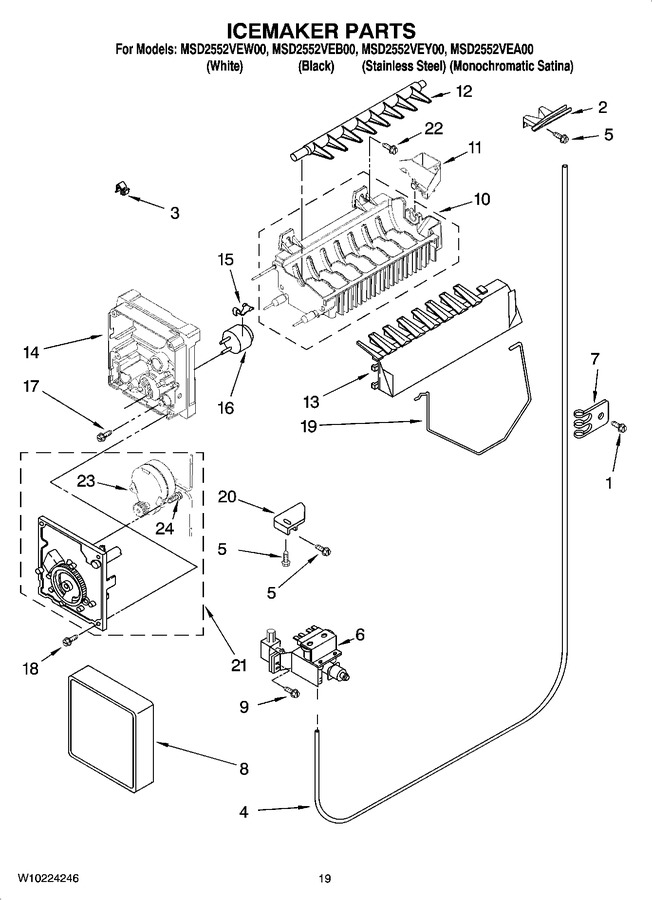

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 6.90 | |||||
| 2 | W11505385 | Chute, Water (Replaces: 2209774) |
|
$ 30.28 | |||||
| 3 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 9.51 | |||||
| 4 | W10823511 | Tube, Water (Replaces: 2223137) |
|
Immediately | $ 29.17 | ||||
| 5 | WP489478 | Screw (Replaces: 489478) |
|
$ 6.98 | |||||
| 6 | W10408179 | Filter Valve Asm (Replaces: 2315534) |
|
Immediately | $ 86.74 | ||||
| 7 | WP488366 | Tube Clip (Replaces: 2208136) |
|
$ 10.06 | |||||
| 8 | WPW10289690 | Cover (Replaces: 2174155) |
|
Immediately | $ 7.56 | ||||
| 9 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 19.04 | |||||
| 10 | WPW10190929 | Mold & Heater Assembly (also Order 542638) (Replaces: W10122527) |
|
$ 209.84 | |||||
| 11 | W10122561 | Cup, Water Fill (Replaces: 628515) |
|
$ 24.99 | |||||
| 12 | WP627843 | Ejector (Replaces: 627843) |
|
$ 75.24 | |||||
| 13 | WP2182124 | Ice Striper (Replaces: 2182124) |
|
$ 77.45 | |||||
| 14 | WP2195914 | Support (Replaces: 2194712) |
|
$ 94.11 | |||||
| 15 | WP2315522 | Retainer,thermostat (Replaces: 2315522) |
|
$ 9.95 | |||||
| 16 | WP627985 | Thermostat (also Order 542369 Cement Alumilastic) (Replaces: 628397) |
|
Immediately | $ 98.26 | ||||
| 17 | 8533917 | Screw |
|
$ 12.03 | |||||
| 18 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.07 | ||||
| 19 | W11807379 | Shut Off Arm (Replaces: 2304354) |
|
Immediately | $ 54.18 | ||||
| 20 | W11500948 | Bracket (Replaces: 628320) |
|
Immediately | $ 28.95 | ||||
| 21 | 8201515 | Module Assembly (includes Items 23 & 24) (Replaces: 626691) |
|
Immediately | $ 127.48 | ||||
| 22 | WP488163 | Screw (Replaces: 488208) |
|
$ 6.79 | |||||
| 23 | 8201515 | Motor (Replaces: 626683) |
|
Immediately | $ 127.48 | ||||
| 24 | 489136 | Screw |
|
$ 9.26 | |||||
| 100 | WPW10190965 | Complete Icemaker Assembly (Replaces: W10190966) |
|
Immediately | $ 94.57 |
