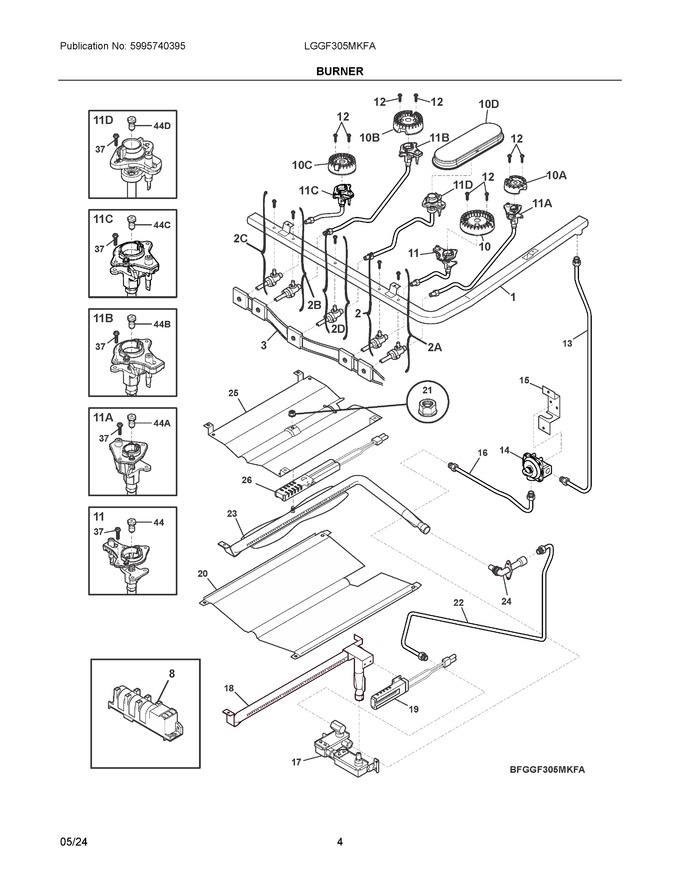

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316551202		Manifold, Pipe				$ 132.77
2	5303935233		Valve, 17k Burner, W/mtg Screw				$ 64.24
3	316219023		Wiring Harness, W/igntr Switch				$ 224.91
8	808608804		Module, Spark   (Replaces: 318079001)			Immediately	$ 76.06
10	316438400		Burner, Sealed, 16/17k			Immediately	$ 83.42
11	316449603		Ignitor/orifice Assy, Top Burner, Right Front, 17k, W/tube & Holder		Appelez-nous	-
12	316529700		Screw, Burner Head, Mtg., (8)				$ 10.76
13	316545700		Tube, 3/8, Aluminum, Rgltr To Manf, With Fittings				$ 148.58
14	5304521339		Regulator, Pressure   (Replaces: 316091706)			Immediately	$ 105.42
15	316091600		Bracket, Regulator				$ 73.56
16	5304507348		Tube-valve To Rgltr, 3/8   (Replaces: 316431000)			Immediately	$ 47.03
17	316404901		Valve, Safety				$ 365.72
18	316404400		Burner, Oven				$ 109.10
19	316489403		Ignitor ,bake Burner			Immediately	$ 113.15
20	5304519024		Baffle, Oven Burner   (Replaces: 316401401)			Immediately	$ 80.39
21	154079601		Nut, Hex Head Sems   (Replaces: 5303013272)				$ 0.41
22	5304507768		Tube-valve To Mixer   (Replaces: 316537100)				$ 50.06
23	316404304		Burner, Broiler				$ 84.39
24	5304516894		Elbow, Mixer   (Replaces: 316409700)				$ 87.21
25	316401301		Baffle, Broil Burner				$ 173.57
26	5304506545		Ignitor, Broil Burner   (Replaces: 316489404)			Immediately	$ 94.21
37	316240600		Screw, Assy Mtg, (8), Ignitor/orifice			Immediately	$ 12.13
44	316527509		Orifice, Top Burner, 17k				$ 19.85
10A	316438200		Burner, Sealed, 5k			Immediately	$ 56.70
10B	316438600		Burner, Sealed, 14k			Immediately	$ 79.80
10C	316558300		Burner, Sealed, 9.5k			Immediately	$ 52.45
10D	316532001		Burner, Sealed, Oval, 9.5k				$ 288.60
11A	316536610		Ignitor/orifice Assy.,, Top Burner, Right Rear, 5k, W/holder, Tube   (Replaces: 316449500)			Immediately	$ 92.38
11B	316536618		Ignitor/orifice Assy., Top Burner, Left Rear, 15k, W/holder, Tube   (Replaces: 316548104)			Immediately	$ 163.30
11C	316536602		Ignitor/orifice Assy.,, Top Burner, Left Front, 9.5k, W/tube & Holder   (Replaces: 316449302)				$ 132.62
11D	316532601		Ignitor/orifice Assy., Top Burner, Center, 9.5k, W/holder-tube				$ 123.62
2A	5303935235		Valve, 5k Burner, W/mtg Screw				$ 100.13
2B	5303935236		Valve, 14k Burner, W/mtg Screw				$ 111.99
2C	5303935234		Valve, 9.5k Burner, W/mtg Screw				$ 83.06
2D	5303935259		Valve, 9.5k Burner, Center, W/mtg Screw				$ 78.67
44A	316527504		Orifice, Top Burner, 5k				$ 22.68
44B	316527513		Orifice, Top Burner, 15k				$ 22.05
44C	316527500		Orifice, Top Burner, 9.5k				$ 21.40
44D	316237902		Orifice, Top Burner, Center, 9.5k				$ 65.22
NI	316526902		Harness, Ignitor				$ 84.63
NI	316443200		Bracket-support		Appelez-nous	-
NI	316215600		Screw, Valve Mtg., 1/4 - 20			Immediately	$ 14.18
NI	316021132		Screw, 8-18 X 11/16, Black, (3)				$ 12.89
NI	316064103		Wire, Ground Assembly		Appelez-nous	-
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NIA	316401500		Cover, Broil Ignitor				$ 12.89
NIA	316021104		Screw, Hex, 8-18 X 3/8, Nick, (3), Regulator Brkt				$ 7.79
