SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

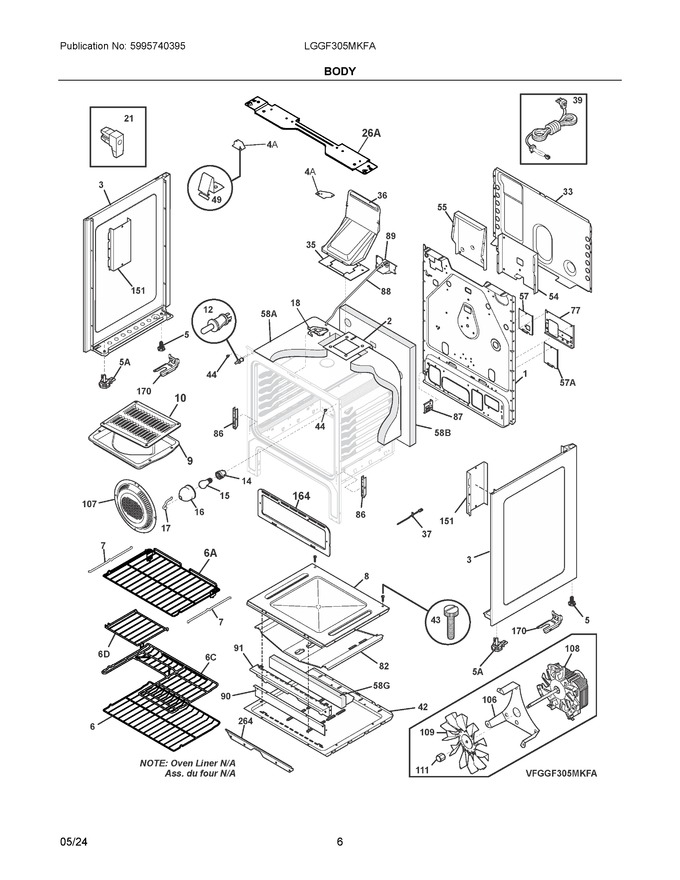

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316401602		Back, Main		Appelez-nous	-
2	316437100		Brace, Oven Top				$ 31.90
3	316400144		Panel, Bodyside, Black, Rh   (Replaces: 316400118)			Immediately	$ 134.69
5	316272900		Screw, Leveling, Plastic, Rear, (2)			Immediately	$ 27.50
6	316496201		Rack, Oven   (Replaces: 316496207)			Immediately	$ 103.48
7	316546300		Link, Coupler, (2), Auto Rack			Immediately	$ 22.75
8	316400603		Panel, Oven Bottom			Immediately	$ 186.56
9	316081900		Pan, Broiler, Optional Access0ry				$ 65.89
10	316082000		Insert, Broiler Pan, Optional Access0ry				$ 68.85
12	316445500		Switch, Oven Light, Door Frame			Immediately	$ 54.74
14	316116400		Receptacle, Oven Light			Immediately	$ 56.10
15	316538904		Lamp, Oven Light   (Replaces: 316538901)			Immediately	$ 20.48
16	5304524341		Lens, Oven Light, Glass   (Replaces: 318406100)			Immediately	$ 14.18
17	316087500		Retainer, Lens				$ 56.70
18	316405800		Latch Assembly, Oven Door			Immediately	$ 56.74
21	316408000		Clip, Bodyside				$ 18.20
33	316402500		Shield, Rear Wall				$ 120.49
35	316542102		Gasket-flue   (Replaces: 316542100)				$ 12.13
36	316208901		Flue				$ 129.68
37	316490000		Probe, Oven Temp			Immediately	$ 58.30
39	5304534000		Cord, Electric Power   (Replaces: 3131425)			Immediately	$ 33.37
42	316400700		Shield, Wool, Lower				$ 146.36
43	316282700		Screw, 8-18 X 1.438, Oven Bottom   (Replaces: 3131732)				$ 9.93
44	316517600		Bumper, Front, Main				$ 12.05
49	316260000		Clip, Maintop Mtg, (2)				$ 8.19
54	316404200		Shield, Heat				$ 57.75
55	5304510473		Shield, Flue   (Replaces: 316404800)				$ 23.39
57	316451100		Cover, Access, W/ Holes		Appelez-nous	-
77	316451200		Plate, Mounting, Safety Valve		Appelez-nous	-
82	316400801		Shield, Bake Burner				$ 164.57
86	316441300		Receptacle, Hinge, (2)   (Replaces: 316537400)				$ 21.97
87	316451001		Bracket, Harness, Mini Oven		Appelez-nous	-
88	316232702		Rod, Auto Latch   (Replaces: 316232700)				$ 12.89
89	5304528973		Motor-latch   (Replaces: 316464300)			Immediately	$ 52.34
90	316401100		Shield, Main Front		Appelez-nous	-
91	316401000		Shield, Front, Burner		Appelez-nous	-
106	316404100		Bracket, Motor Mtg.				$ 63.70
107	316026701		Cover, Fan				$ 408.89
108	5304467897		Motor-convection   (Replaces: 316459100)				$ 231.90
109	318398302		Blade, Fan   (Replaces: 316136400)			Immediately	$ 29.11
111	316136600		Nut, Fan Retainer			Immediately	$ 19.13
151	316404600		Shield, Bodyside				$ 49.30
164	316450301		Trim, Front, Mini Oven		Appelez-nous	-
170	316112005		Anti Tip Kit, Assembly   (Replaces: 316112004)			Immediately	$ 18.91
264	316404700		Bracket, Air Dam		Appelez-nous	-
26A	316498200		Bracket-support, Chassis, Aluminum				$ 52.33
3A	316400145		Panel, Bodyside, Black, Lh   (Replaces: 316400119)			Immediately	$ 133.93
4A	316446900		Bracket, Chassis, Front, (2)				$ 8.51
57A	316451101		Cover, Access, W/o Holes		Appelez-nous	-
58A	316403700		Insulation, Oven Wrapper				$ 304.06
58B	316403600		Insulation, Oven Back				$ 125.75
58G	08067973		Insulation, Main Front				$ 51.74
5A	5304509869		Leveling Leg Assy, Metal, Front, (2), Bracket & Leg   (Replaces: 316498900)			Immediately	$ 15.08
6A	316577800		Rack, Oven, Auto   (Replaces: 316556500)				$ 243.43
6C	316425600		Rack, Half, Oven				$ 254.73
6D	316419400		Rack, Half Insert, Oven				$ 209.58
NI	316008401		Washer, 3/4 Od X 1/4 Id, Steel				$ 11.34
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	316021132		Screw, 8-18 X 11/16, Black, (3)				$ 12.89
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316539800		Retainer, Wire				$ 14.41
NI	316231800		Cover, Hole, Conv. Element		Appelez-nous	-
NI	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*				$ 13.46
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	5303271648		Screw, Wafer Hd Sq Dr, 8-18ab X 0.5			Immediately	$ 13.46
NI	316512555		Harness Wiring, Main		Appelez-nous	-
NIA	316112005		Bracket, Anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
NIA	316432800		Clip, Wire		Appelez-nous	-
NIB	316116000		Screw, Concrete, 1.75", Anti-tip Brkt				$ 12.89
NIC	316541700		Template, Anti-tip		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
