SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

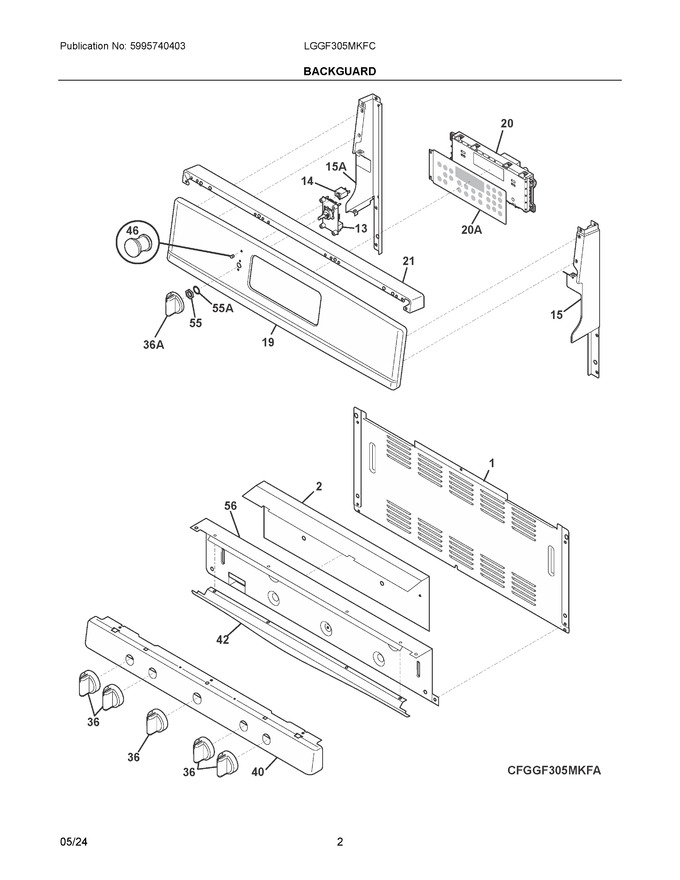

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316557600		Shield, Rear Wall				$ 70.04
2	316497601		Shield, Backguard, Inner				$ 49.40
13	316414406		Control, Bake, Mini Oven				$ 206.61
14	316022500		Light/lamp, Indicator, Black, 125 V			Immediately	$ 53.57
15	316546702		Cap, Backguard, Black, Rh End				$ 52.55
19	316572415		Panel, Backguard, Stainless		Appelez-nous	-
20	316560161		Controller, Electronic, Es540l		Appelez-nous	-
21	316546605		Cap, Backguard, Black, Top   (Replaces: 316546601)				$ 66.91
36	316564509		Knob, Top Valve, Stainless, (5)				$ 131.96
40	316249044		Panel, Manifold, Stainless Steel				$ 120.28
42	316416204		Trim, Extrusion, Black   (Replaces: 316416200)				$ 43.99
46	316557300		Lens-light/lamp, Indicator, Clear			Immediately	$ 16.77
55	316247700		Nut, Mounting				$ 18.20
56	316230708		Shield, Backguard, Inner   (Replaces: 316230701)				$ 61.66
15A	316546703		Cap, Backguard, Black, Lh End				$ 64.47
20A	316419819		Overlay, Clock, Black, Es540l		Appelez-nous	-
36A	316564506		Knob, Top Valve, Stainless, (5)				$ 104.48
55A	316247800		Washer, Lock, Mtg				$ 18.20
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316525611		Harness, Mini Oven, Control		Appelez-nous	-
NI	316089500		Screw, 10-16 X .486				$ 13.46

    View Diagram in Separate Window       Print Part List
