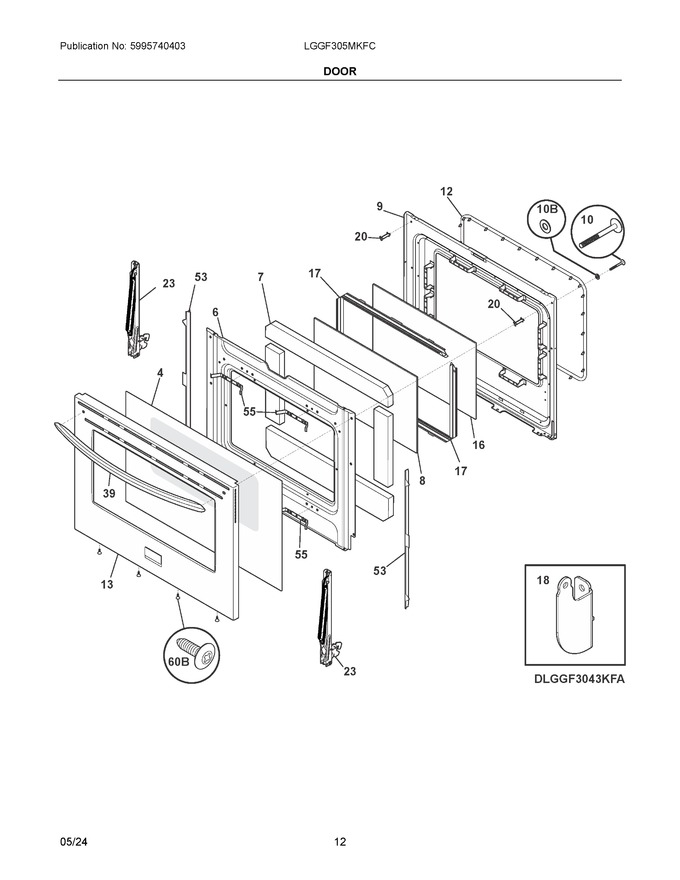

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Backguard
03 - Burner
04 - Body
05 - Top/drawer
06 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 316452723 | Glass, Oven Door, Black, W/foil |
|
Immediately | $ 226.00 | ||||
| 6 | 316402306 | Shield, Wool |
|
- | |||||
| 7 | 316403900 | Insulation, Oven Door |
|
Immediately | $ 72.30 | ||||
| 8 | 5304503232 | Glass, Oven Door, Heat Barrier (Replaces: 316117500) |
|
$ 116.95 | |||||
| 9 | 316423805 | Liner, Oven Door |
|
$ 140.49 | |||||
| 10 | 316433303 | Screw, Handle Mtg., #10-24 X 1.75", (2) (Replaces: 316439500) |
|
Immediately | $ 31.17 | ||||
| 12 | 5304498835 | Seal, Oven Door (Replaces: 316403101) |
|
Immediately | $ 88.74 | ||||
| 13 | 316566301 | Panel Assembly, Door, Stainless, Outer, W/badge |
|
$ 384.24 | |||||
| 16 | 316117501 | Glass, Oven Door, Inner |
|
$ 148.16 | |||||
| 17 | 5304504811 | Spacer, Door Glass, (2) (Replaces: 316402403) |
|
Immediately | $ 25.02 | ||||
| 18 | 316547900 | Link, Door, (2), Auto Rack |
|
$ 20.56 | |||||
| 20 | 316408600 | Spacer, Door Handle, (2) |
|
$ 16.45 | |||||
| 23 | 316456306 | Hinge, Oven Door, (2) |
|
$ 56.96 | |||||
| 39 | 316554010 | Handle, Door/drawer, Stainless (Replaces: 316554005) |
|
Immediately | $ 168.44 | ||||
| 53 | 5304532043 | Shield, Filler, Door, (2) (Replaces: 316408101) |
|
$ 37.41 | |||||
| 55 | 316408300 | Bracket, Glass Support, (4) |
|
$ 21.23 | |||||
| 10B | 316008401 | Washer, 3/4 Od X 1/4 Id, Steel |
|
$ 11.34 | |||||
| 60B | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 5303285179 | Screw, Wafer Head, 8-32t X 0.500, Black, 44* |
|
$ 13.46 | |||||
| NI | 316433603 | Label, Anti-tip |
|
$ 3.55 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NIA | 316418900 | Screw, Sims Lp, #8-32 X 5/16", Black |
|
$ 14.18 |
