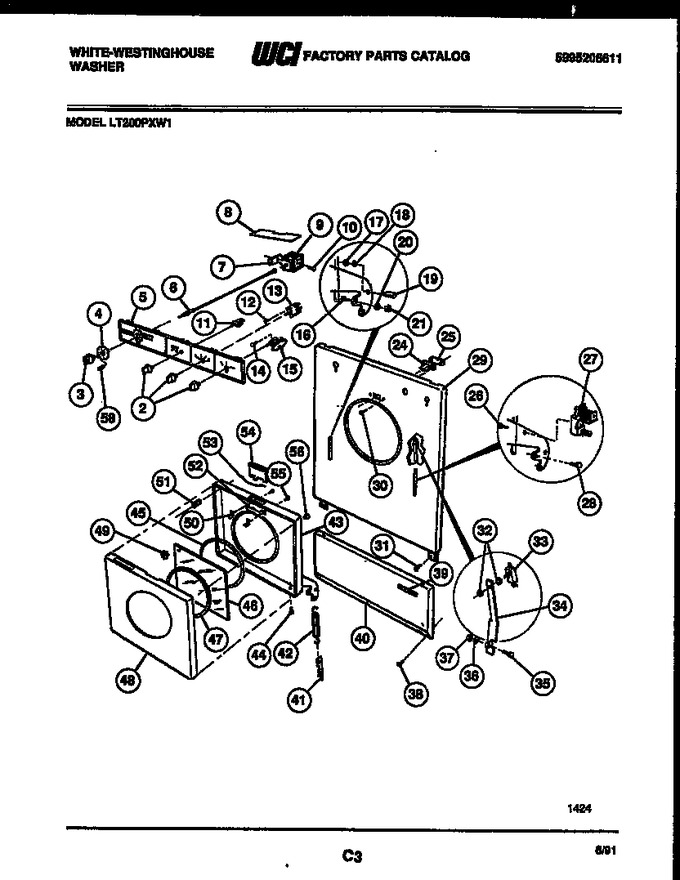

02 - Console, Control And Door Parts
03 - Cabinet Parts
04 - Tub And Components
05 - Drive Components
06 - Counterweights
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5300633724 | Knob (3) |
|
- | |||||
| 3 | 5303211060 | Knob-timer |
|
- | |||||
| 4 | 5303202955 | Dial |
|
- | |||||
| 5 | 3202936 | Panel-control |
|
- | |||||
| 6 | 5303202968 | Rod-w/ Clamp |
|
- | |||||
| 7 | 3202969 | Bracket-timer |
|
- | |||||
| 8 | 3202971 | Cover-timer |
|
- | |||||
| 9 | 5303202973 | Timer |
|
- | |||||
| 10 | 08015356 | Screw |
|
- | |||||
| 11 | 5303202977 | Switch-temp Select |
|
- | |||||
| 12 | 3281092 | Screw |
|
- | |||||
| 13 | 5303202976 | Switch-cycle Signal |
|
- | |||||
| 14 | 5303281035 | Screw |
|
- | |||||
| 15 | 5303202978 | Switch Wlc |
|
- | |||||
| 16 | 3261026 | Screw |
|
- | |||||
| 17 | 3261064 | Strain Relief |
|
- | |||||
| 18 | 5300402801 | Washer |
|
- | |||||
| 19 | 3261025 | Stud |
|
- | |||||
| 20 | 5300402801 | Washer |
|
- | |||||
| 21 | 5303269641 | Nut |
|
- | |||||
| 24 | 5303261023 | Catch-door |
|
- | |||||
| 25 | 5300500531 | Nut-strip |
|
- | |||||
| 26 | 08015289 | Screw |
|
- | |||||
| 27 | 5303261011 | Solenoid |
|
- | |||||
| 28 | 3261026 | Screw-hinge |
|
- | |||||
| 29 | 3204505 | Panel-front-almd |
|
- | |||||
| 30 | 08015286 | Screw |
|
- | |||||
| 31 | 5303010202 | Screw |
|
$ 5.15 | |||||
| 32 | 08015344 | Locknut |
|
- | |||||
| 33 | 5300184701 | Switch-door |
|
- | |||||
| 34 | 3261013 | Arm-door Switch |
|
- | |||||
| 35 | 08015362 | Screw |
|
- | |||||
| 36 | 5300402801 | Washer |
|
- | |||||
| 37 | 5300402601 | Nut |
|
- | |||||
| 38 | 218362501 | Screw (Replaces: 5303209506) |
|
$ 12.05 | |||||
| 39 | 5300604443 | Medallion |
|
- | |||||
| 40 | 5300602004 | Panel-service-almd |
|
- | |||||
| 41 | 3261082 | Bracket-spring |
|
- | |||||
| 42 | 5300011943 | Spring |
|
- | |||||
| 43 | 3261029 | Panel-id-almond |
|
- | |||||
| 44 | 08001088 | Screw |
|
- | |||||
| 45 | 5303261021 | Gasket-door |
|
- | |||||
| 46 | 3261042 | Glass |
|
- | |||||
| 47 | 5300183302 | Gasket |
|
- | |||||
| 48 | 08015406 | Panel-od-almd |
|
- | |||||
| 49 | 5308015122 | Spacer (4) |
|
- | |||||
| 50 | 5308015346 | Clip |
|
- | |||||
| 51 | 5308015121 | Spacer |
|
- | |||||
| 52 | 5308015383 | Guide |
|
- | |||||
| 53 | 5300062204 | Bar |
|
- | |||||
| 54 | 5308015229 | Latch Bar |
|
- | |||||
| 55 | 08015286 | Screw |
|
- | |||||
| 56 | 5308001717 | Bumper |
|
- | |||||
| 58 | 5303202946 | Spring |
|
- | |||||
| *47891 | 3202980 | Harness - Door Switch |
|
- | |||||
| 11A | 5308001853 | Screw (non-illustrated) |
|
- | |||||
| 27A | 5303281096 | Screw-solenoid (non-illustrated) |
|
- |
