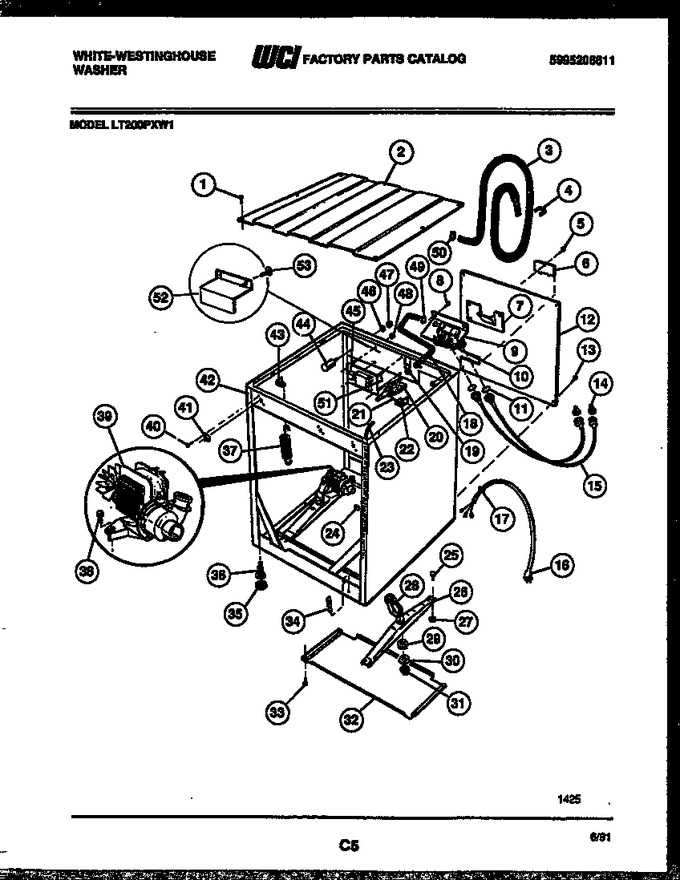

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3261048		Screw (6)		Appelez-nous	-
2	3206232		Top Plate		Appelez-nous	-
3	5303202952		Hose-drain		Appelez-nous	-
4	3202981		Clamp (4)		Appelez-nous	-
5	5303010202		Screw				$ 5.15
6	3202982		Cover-drain Hose		Appelez-nous	-
7	08015448		Cover		Appelez-nous	-
8	5303010202		Screw				$ 5.15
9	5308015454		Bracket		Appelez-nous	-
10	5303202984		Valve-fill		Appelez-nous	-
11	3261058		Washer		Appelez-nous	-
12	3202983		Panel-back		Appelez-nous	-
13	5303010202		Screw				$ 5.15
14	5303261059		Washer-filter		Appelez-nous	-
15	5303912532		Hose (2)				$ 88.20
16	5303202995		Cord-service		Appelez-nous	-
17	3261064		Strain Relief		Appelez-nous	-
18	5300156174		Hose-high Pressure		Appelez-nous	-
19	08001916		Clamp		Appelez-nous	-
20	5300154361		Air Gap		Appelez-nous	-
21	08015356		Screw		Appelez-nous	-
22	08015227		Bracket		Appelez-nous	-
23	3202994		Hose W.l.c.		Appelez-nous	-
24	5300502207		Clamp		Appelez-nous	-
25	5303203003		Screw (8)		Appelez-nous	-
26	5303202997		Support		Appelez-nous	-
27	5308001884		Nut (8)		Appelez-nous	-
28	5303202996		Shoe & Spring Assy		Appelez-nous	-
29	5303202998		Grommet		Appelez-nous	-
30	5303203000		Nut-locking		Appelez-nous	-
31	5303203002		Nut-retaining		Appelez-nous	-
32	3203001		Pan-bottom		Appelez-nous	-
33	5303281035		Screw		Appelez-nous	-
34	3261082		Bracket		Appelez-nous	-
35	5308010185		Pad		Appelez-nous	-
36	5308027458		Bolt-foot		Appelez-nous	-
37	5303937063		Spring (4)		Appelez-nous	-
38	3202989		Screw		Appelez-nous	-
39	5303202988		Pump-complete		Appelez-nous	-
40	5303281150		Screw		Appelez-nous	-
41	3261088		Spacer		Appelez-nous	-
42	3203049		Body-almd		Appelez-nous	-
43	5308015384		Bracket (4)		Appelez-nous	-
44	5303202990		Noise-suppressor		Appelez-nous	-
45	5303202986		Speed-control		Appelez-nous	-
46	3202987		Washer		Appelez-nous	-
47	3202985		Nut		Appelez-nous	-
48	3202991		Nut		Appelez-nous	-
49	5300156174		Clamp		Appelez-nous	-
50	5303161404		Clamp		Appelez-nous	-
51	5303208253		Bolt & Nut (4)		Appelez-nous	-
52	5303208852		Spacer-speed Control		Appelez-nous	-
53	5303208872		Screw (2)		Appelez-nous	-
